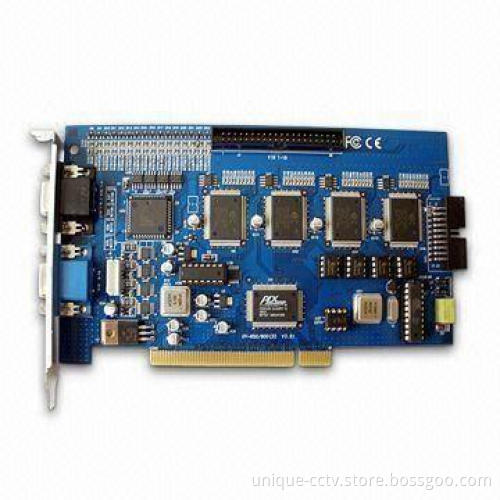

CCTV MPEG-4 DVR Card with DB15 x 2 Input D-type and GV-NET/IO Card Support

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Input D-type: DB15 x 2

Video inputs 4, 8, 12, 16 Cams (can build 32CH system from 2pcs dvr800 V4)

Audio inputs 4-channels

Total recording rate at 320 X 240 pixels resolution 120fps (NTSC), 100 fps (PAL)

Display rate: 120fps (NTSC) and 100fps (PAL)

Video resolution: NTSC/PAL full D1, half D1, and CIF

Compression format: Geo MPEG-4, Geo MPEG-4 (ASP), Geo H264, and Geo H264 V2

GV-NET card support

GV-A16 support (what's GV-A16 board?)

GV-NET/IO card support

Software V8.3.3/V8.3.2/V8.3/V7.05/V7.0 (with USB dongle)/V6.1/V6.05

Dimensions (W x H) GV-800 D-type: 174 x 98mm/6.85 x 3.86 inches

Note: DVR800S V4 is currently not compatible with VIA series and ATI series chipset motherboards and 64-bit Microsoft Windows operating system

Interface: main interface: 4-view playback interface

Minimum system requirements for one card

Operating system support:
- 32-bit Microsoft Windows XP, Vista, 7, Server 2008
- 64-bit Windows 7 and Windows Server 2008
CPU: Pentium 4 3.0GHz with hyper-threading
RAM Microsoft Windows XP: 2 x 512MB dual channels, Vista, 7, Server 2008: 2 x 1 GB dual channels
HDD 80GB recommended
VGA ATI Radeon X600
NVIDIA 6200
DirectX 9.0c

Minimum system requirements for two cards:

Operating system support:
- 32-bit Microsoft Windows XP, Vista, 7, and Server 2008
- 64-bit Microsoft Windows 7 and Server 2008
CPU Pentium 4-3.0 GHz Dual Core
RAM 2 x 1GB dual channels
HDD 160 GB recommended
VGA ATI Radeon X1300 PCI-E
NVIDIA GeForce 7300 PCI-E
DirectX 9.0c
