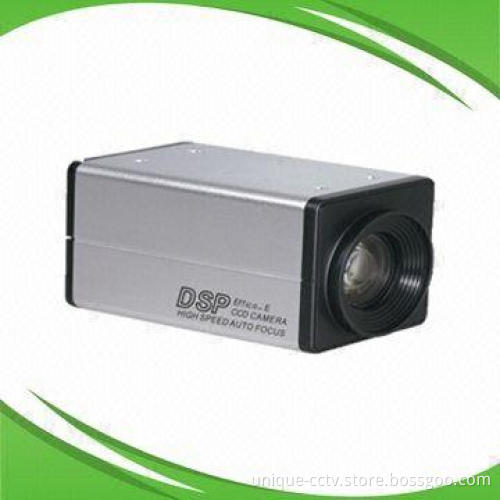

1/4-inch 600TVL Color Sony Super HAD CCD IR Cut Optional Zoom Camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Paypal

Product Description

Number of pixel PAL (H x V): 960 x 596

Scanning system: 2:1 internal

Pickup device: 1/4-inch solid state image sensor

System of signal: PAL/NTSC

S/N ratio:above 52dB (AGC off)

Horizontal resolution: 420 TV lines

Video output: 1.0 V p-p/75 Ohms

Built-in lens: 27 x zoom lens (3.9 to 105.3mm, F1.6 to 3.7)

Angle of view:

Minimum illumination: 1 lux (DDS mode), 0.1 lux (day and night model)

Synchronization system: internal

Camera control: RS-422/485

Operation system: on/off (English/Chinese)

Backlight compensation: on/off

Black and white: on/off

Electronic shutter:

White balance: auto/push auto

Supplied voltage: 9V DC to 15V (recommendation)

Power requirement: maximum, 4.5W/360mA

Dimensions (L x W x H): 103 x 60 X 60.4m

Horizontal: 47° (wide)/3° (tele)

NTSC: 1/60 to 1/10,000 seconds

PAL: 1/50 to 1/10,000 seconds
