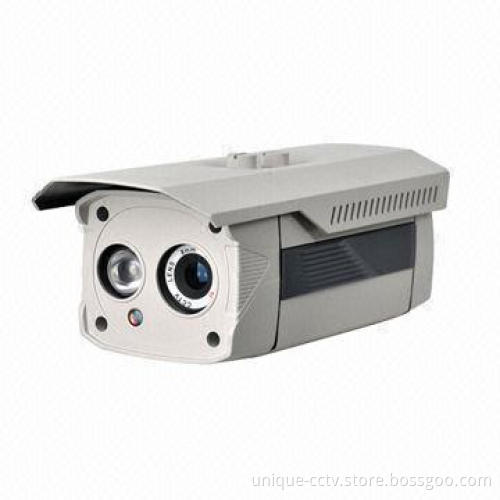

1/4" 1.0 Megapixel CMOS Sensor Megapixel IP Camera with IP66 Rated Waterproof
  • 1/4" 1.0 Megapixel CMOS Sensor Megapixel IP Camera with IP66 Rated Waterproof
1/4" 1.0 Megapixel CMOS Sensor Megapixel IP Camera with IP66 Rated Waterproof

1/4" 1.0 Megapixel CMOS Sensor Megapixel IP Camera with IP66 Rated Waterproof

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • 1/4" 1.0 megapixel CMOS sensor，max image resolution 1,280 x 720 pixels at 25fps
  • H.264 main profile at level 3.0 coding, real time H.264 dual-stream encoding, resolution, frame rate, bit rate adjustable
  • Supports color/BW mode converting
  • Built-in motion detection, support alarm linkage, bi-directional real time audio transmission and alarm input and output is optional
  • Auto-retrieve function and auto-connection network
  • Support plug-and-play, including PC surveillance platform and mobile client, easy to remote
  • Integrated ONVIF standard, compatibility with third-party ONVIF platform software
  • POE is optional
  • IP66 rated waterproof, outdoor use
  • Specifications:
    • Hardware processor: GM8126
    • Sensor: 1/4" 1.0 megapixel CMOS
    • Lens optional: 8/12/16mm fixed
    • IR LED: 4pcs IR array LED
    • IR distance: 80~100m
    • Day/night IR-CUT
    • Minimum illumination: 0.5/0.lux with IR on
    • Maximum S/N ratio: 50dB
    • Image:
      • Main stream: 1,280 x 720 at 1-25fps
      • Sub stream: 640 x 360 at 1-25fps, 320 x 180 at 1-25fps
    • Bit rate: 128~4,096kbps
    • Supports CBR/VBR
    • Image control: Hue, saturation, brightness, contrast, exposure
    • Auto image control: AE and AWB
    • Compression: G.711-A
    • Bit rate: 64kbps/128kbps
    • Talk-back supported
    • Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, FTP, UPNP
    • Compliance: ONVIF 2.1 (1.02 backward compatible)
    • PC client and browser ISS, IE6.0 and above
    • Mobile phone iPhone, iPad, Android
    • WIFI encryption WAP, WAP2
    • Audio input (optional): 1CH 3.5mm audio interface, mic-/line-in
    • Audio output (optional): 1CH 3.5mm audio interface
    • LAN: 1 RJ45 10M/100M Ethernet port
    • General:
      • Working temperature range: -10~55℃
      • Working humidity range: 0 - 90%
      • Protection level: IP66 rated waterproof
      • Power supply: DC 12 V/1A
      • Power consumption: maximum 6W
    • Approvals: CE, FCC, RoHS
    Download more information about this product
  • Hardware processor: GM8126
  • Sensor: 1/4" 1.0 megapixel CMOS
  • Lens optional: 8/12/16mm fixed
  • IR LED: 4pcs IR array LED
  • IR distance: 80~100m
  • Day/night IR-CUT
  • Minimum illumination: 0.5/0.lux with IR on
  • Maximum S/N ratio: 50dB
  • Image:
    • Main stream: 1,280 x 720 at 1-25fps
    • Sub stream: 640 x 360 at 1-25fps, 320 x 180 at 1-25fps
  • Bit rate: 128~4,096kbps
  • Supports CBR/VBR
  • Image control: Hue, saturation, brightness, contrast, exposure
  • Auto image control: AE and AWB
  • Compression: G.711-A
  • Bit rate: 64kbps/128kbps
  • Talk-back supported
  • Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, FTP, UPNP
  • Compliance: ONVIF 2.1 (1.02 backward compatible)
  • PC client and browser ISS, IE6.0 and above
  • Mobile phone iPhone, iPad, Android
  • WIFI encryption WAP, WAP2
  • Audio input (optional): 1CH 3.5mm audio interface, mic-/line-in
  • Audio output (optional): 1CH 3.5mm audio interface
  • LAN: 1 RJ45 10M/100M Ethernet port
  • General:
    • Working temperature range: -10~55℃
    • Working humidity range: 0 - 90%
    • Protection level: IP66 rated waterproof
    • Power supply: DC 12 V/1A
    • Power consumption: maximum 6W
  • Approvals: CE, FCC, RoHS
  • Main stream: 1,280 x 720 at 1-25fps
  • Sub stream: 640 x 360 at 1-25fps, 320 x 180 at 1-25fps
  • Working temperature range: -10~55℃
  • Working humidity range: 0 - 90%
  • Protection level: IP66 rated waterproof
  • Power supply: DC 12 V/1A
  • Power consumption: maximum 6W
