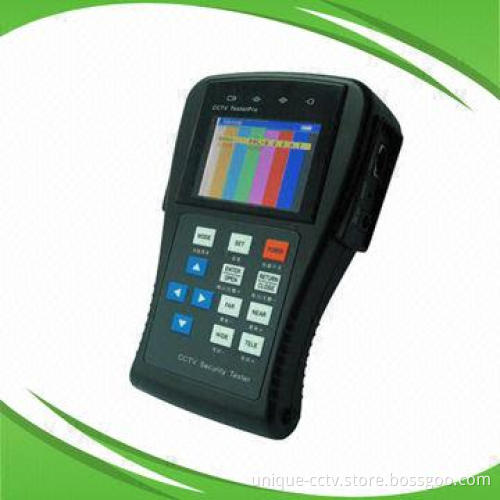

STest-891 CCTV Security Tester PRO with 2.8" Digital TFT LCD Display
  • STest-891 CCTV Security Tester PRO with 2.8" Digital TFT LCD Display
STest-891 CCTV Security Tester PRO with 2.8" Digital TFT LCD Display

STest-891 CCTV Security Tester PRO with 2.8" Digital TFT LCD Display

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Video test:
    • Signal mode: NTSC/PAL (auto adapter)
    • Display: 2.8" digital TFT-LCD, 960 x 240 resolution
    • LCD adjustment: brightness, contrast, saturation adjustable
    • Video in/out: 1 channel BNC input and 1 channel output
    • Video output mode: 1.0 Vp-p
  • PTZ controller:
    • Communication: RS232, RS422 simplex and RS485
    • PTZ protocol: compatible with more than 20 protocols such as Pelco-D/P, Samsung, Panasonic, Lilin, Yaan
    • Baud rate: 150, 300, 600, 1200, 2400, 4800, 9600, 19200bps
    • Video signal generation
    • Color bar generation: output channel color bar video signal for testing monitor or video cable
  • UTP cable test:
    • UTP cable test: UTP cable connection status and display in the screen, read the number of the test box
    • DC 12V 1A power output
    • DC 12V power output
    • Output: DC 12V/1A power for camera
  • Audio input test:
    • Test the pickup and other audio equipment on the front-end
    • RS485 data analyst
    • Data monitor: captures and analyzes the command data from controlling device
  • Power:
    • Power adapter: DC 5V/2A
    • Battery: built-in 3.7V lithium polymer battery, 2,800mAh
    • Rechargeable: after charging 3 to 4 hours, working time lasts 15 hours
    • Low consumption: energy-saving technology
  • General:
    • Working temperature: -30 to +70°C
    • Working humidity: 30 to 90%
    • Dimensions/weight: 170 x 99 x 48mm/293g
  • Signal mode: NTSC/PAL (auto adapter)
  • Display: 2.8" digital TFT-LCD, 960 x 240 resolution
  • LCD adjustment: brightness, contrast, saturation adjustable
  • Video in/out: 1 channel BNC input and 1 channel output
  • Video output mode: 1.0 Vp-p
  • Communication: RS232, RS422 simplex and RS485
  • PTZ protocol: compatible with more than 20 protocols such as Pelco-D/P, Samsung, Panasonic, Lilin, Yaan
  • Baud rate: 150, 300, 600, 1200, 2400, 4800, 9600, 19200bps
  • Video signal generation
  • Color bar generation: output channel color bar video signal for testing monitor or video cable
  • UTP cable test: UTP cable connection status and display in the screen, read the number of the test box
  • DC 12V 1A power output
  • DC 12V power output
  • Output: DC 12V/1A power for camera
  • Test the pickup and other audio equipment on the front-end
  • RS485 data analyst
  • Data monitor: captures and analyzes the command data from controlling device
  • Power adapter: DC 5V/2A
  • Battery: built-in 3.7V lithium polymer battery, 2,800mAh
  • Rechargeable: after charging 3 to 4 hours, working time lasts 15 hours
  • Low consumption: energy-saving technology
  • Working temperature: -30 to +70°C
  • Working humidity: 30 to 90%
  • Dimensions/weight: 170 x 99 x 48mm/293g
