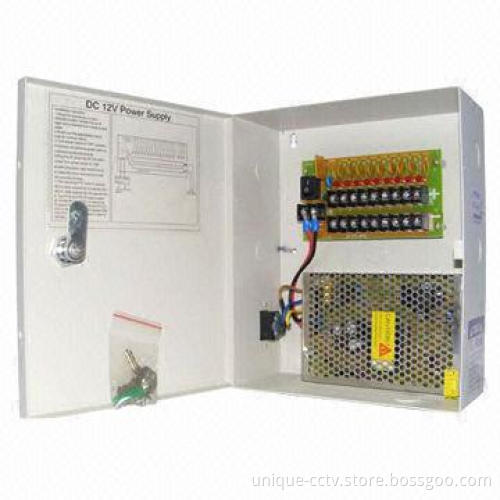

CCTV Box Power Supply with AC 100 to 240V Input, DC 12V/10A Output

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Compliant with CE standards and the RoHS Directive

Input voltage: AC 100 to 240V

Input frequency: 50/60Hz

Output voltage: DC 12V ± 5%

Total output current: 10A

Total outputs: 9

Fuse type: PTC (resettable)

Fuse rating: 2A

Features:

General protection: each output has independent PTC fuse and LED indicator, when problem occurs, only affect the independent output, other outputs still working
Short-circuit protection: when short condition occurs, independent PTC fuse will open the circuit, when condition removed, PTC fuse will automatically back to close
High-voltage protection: when high-voltage occurs, the surge protection will be hit through to protect the connected device
Over-current protection: when over-current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal

Applications: CCTV camera, PTZ, IR illuminator, video processor, access control and others

Packing dimensions: 250 x 215 x 94mm

Net weight: 2.3kg

General protection: each output has independent PTC fuse and LED indicator, when problem occurs, only affect the independent output, other outputs still working

Short-circuit protection: when short condition occurs, independent PTC fuse will open the circuit, when condition removed, PTC fuse will automatically back to close

High-voltage protection: when high-voltage occurs, the surge protection will be hit through to protect the connected device

Over-current protection: when over-current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal
