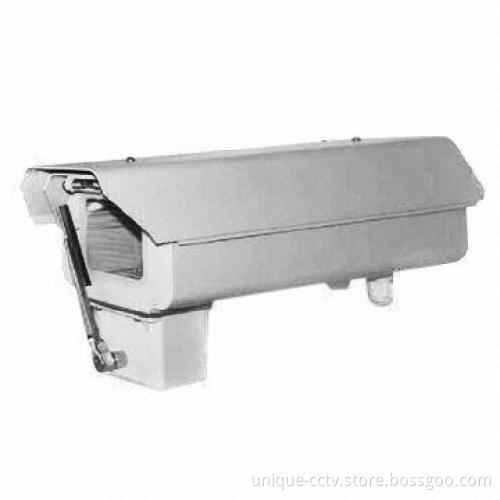

All-weather Outdoor CCTV Camera Housing with Fan, Heater, Wiper Available for Customer's Need

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Outdoor application, bottom fasten mode, easy access to installation

Fan and heater, wiper are available for customers' need

Designed for medium-to-large CCD camera

Back-open style, easy access to maintenance

Die-cast and extruded aluminum construction

IP66 standard

2UL-glands located at the bottom of the enclosure which diameter is 11mm

The interior temperature can be reduced 3 to 5°C by the sunshield

Parameter:

Construction: die-cast and extruded aluminum

Dimensions of the window: 88 x 101mm

Maximum camera and lens: 300 x 140 x 108

Auto temperature control range:

Dimensions of outline: 580 x 140 x 190mm

Net weight: 4.5kg

Input voltage: 24V, 220V AC

Input power: 50/60Hz

Heater: 50W (220V), 44W (24V)

Blower: 13.2W (220V), 2.16W (24V)

Operation temperature: -5 to 50°C with heater, adapt for -35°C

Heater:

Blower:

On: 5 ±5°C

Off: 20 ±5°C

On: 5 ±5°C

Off: 20 ±5°C
