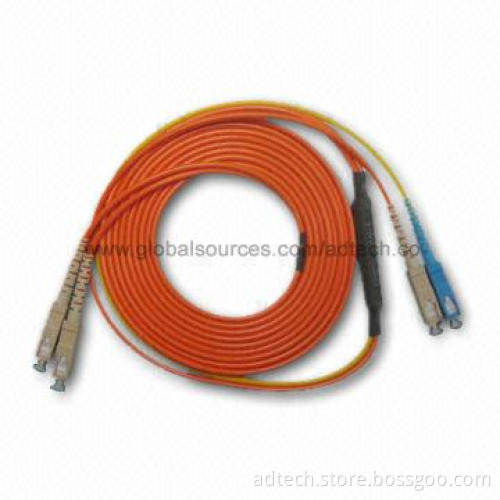

Fiber-optic mode conditioning patch cords, SC-SC, 50um and 62.5um to 9/125um
  • Fiber-optic mode conditioning patch cords, SC-SC, 50um and 62.5um to 9/125um
Fiber-optic mode conditioning patch cords, SC-SC, 50um and 62.5um to 9/125um

Fiber-optic mode conditioning patch cords, SC-SC, 50um and 62.5um to 9/125um

Get Latest Price
Payment Type:
T/T in Advance or L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance or L/C at Sight
Product Description
Product Description
  • A mode conditioning patch cord (MCP) is a duplex multiple mode cord that has a small length of single mode fiber at the start of the transmission length
  • The basic principle behind the cord is to launch laser into the small section of single mode fiber
  • The other end of single mode fiber is coupled to the multi-mode section of the cable with the offset from the center of the multi-mode fiber
  • This patch cord is required with LX or long-wave Gigabit Ethernet transceivers that use both SM and MM fibers
  • When launching into a MM fiber, the transceivers can generate multiple signals that cause differential mode delay (DMD) which can severely limit transmission distances
  • A mode conditioning patch cord removes these multiple signals, eliminating problems at the receiver end
  • Applications:
    • Long haul to short haul LX Gigabit systems
    • Recommended for multiple mode cable runs greater than 50ft
    • Gigabit Ethernet 1,000Base-LX (1,300nm long wavelength)
  • Features:
    • Eliminates issues related to differential mode delay (DMD)
    • Compliant with IEEE 802.3z
    • Low insertion loss (Available with 50um and 62.5um multiple mode cable
  • Long haul to short haul LX Gigabit systems
  • Recommended for multiple mode cable runs greater than 50ft
  • Gigabit Ethernet 1,000Base-LX (1,300nm long wavelength)
  • Eliminates issues related to differential mode delay (DMD)
  • Compliant with IEEE 802.3z
  • Low insertion loss (Available with 50um and 62.5um multiple mode cable
