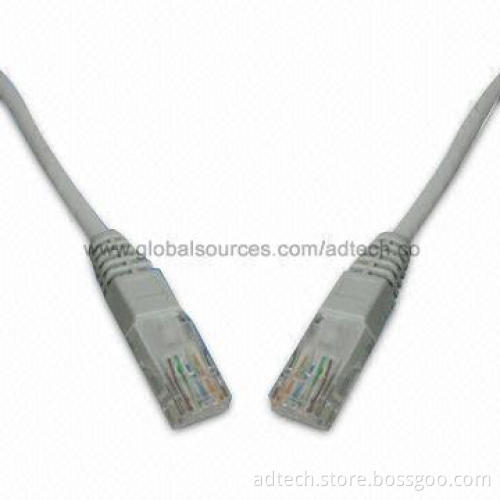

Molded Boot CAT6A Patch Cable UTP 10 Giga Patch Leads, Tested to 500MHz
  • Molded Boot CAT6A Patch Cable UTP 10 Giga Patch Leads, Tested to 500MHz
Molded Boot CAT6A Patch Cable UTP 10 Giga Patch Leads, Tested to 500MHz

Molded Boot CAT6A Patch Cable UTP 10 Giga Patch Leads, Tested to 500MHz

Get Latest Price
Payment Type:
T/T in Advance or L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance or L/C at Sight
Product Description
Product Description
  • ADTEK's 10G CAT6a snagless patch cord, built and tested to exceed 500MHz, 10 times faster than CAT6 and 100 times faster than CAT5e cables
  • Our CAT6a snagless patch cords enable 10GBase-T performance in data center applications
  • Features:
    • Gold-plated connector contacts deliver maximum conductivity for high-speed data transmissions
    • Molded snagless guards make installations effortless and protect connector tabs from damage
    • Individually tested with results in every bag
    • Performance tested to exceed 500MHz
    • Completely backwards compatible with existing CAT5e and CAT6 network applications
  • Specifications:
    • Conductor construction: stranded copper
    • Conductor size: 24AWG x 4 pairs
    • Dielectric strength: 1.75kV AC/0.15s
    • Flame retardant test: CM
    • Insulation material: HDPE
    • Jacket diameter: 6.2 ±0.3mm
    • Jacket material: PVC
    • Mutual capacitance: 5.6nF/100m nominal
    • Propagation delay: 45nS/100m (maximum) at 500MHz
  • Gold-plated connector contacts deliver maximum conductivity for high-speed data transmissions
  • Molded snagless guards make installations effortless and protect connector tabs from damage
  • Individually tested with results in every bag
  • Performance tested to exceed 500MHz
  • Completely backwards compatible with existing CAT5e and CAT6 network applications
  • Conductor construction: stranded copper
  • Conductor size: 24AWG x 4 pairs
  • Dielectric strength: 1.75kV AC/0.15s
  • Flame retardant test: CM
  • Insulation material: HDPE
  • Jacket diameter: 6.2 ±0.3mm
  • Jacket material: PVC
  • Mutual capacitance: 5.6nF/100m nominal
  • Propagation delay: 45nS/100m (maximum) at 500MHz
