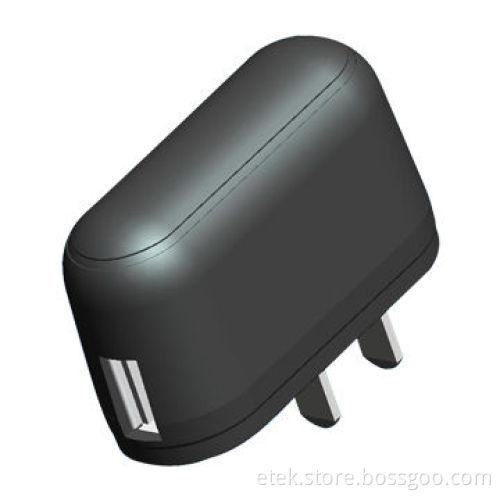

5V/600mA USB Mobile Phone Charger, 100 to 240V, 50/60Hz Inputs and USB Socket

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

Inputs: 100 to 240V, 50/60Hz
Outputs: 2.8 to 7.5V in maximum, 0 to 1.0A for current
DC output: USB socket
Output voltage precision: ±5%
Regulation line: ±1%
Load: ±5%
Output powers 3.3 to 5W

Features:

High-reliability
High-efficiency
Consumption meeting US energy star/CEC/AS/N24665-2005 EPSenergy efficiency requirements

Protections:

Over-voltage
Over-current
Short-circuit
Thermal shutdown capability

Emission and immunity:

FCC part: 15 class B
EN55022: class B
AS/NZS3548/AS/NZS4251.1 class B
GB 9254-1998/GB17625.1-2003
ISPR22 class B
CNS13438 class B
EN 55024/A12001
IEC61000-4-2, IEC61000-4-3
IEC61000-4-4, IEC61000-4-5
IEC61000-4-6, IEC61000-4-11

Safety approvals:

EN 60950: 200
PSE IEC6095
UL60950 3rd edition
AS/NZS 60950:2000
CE
GB4943-2001

Inputs: 100 to 240V, 50/60Hz

Outputs: 2.8 to 7.5V in maximum, 0 to 1.0A for current

DC output: USB socket

Output voltage precision: ±5%

Regulation line: ±1%

Load: ±5%

Output powers 3.3 to 5W

High-reliability

High-efficiency

Consumption meeting US energy star/CEC/AS/N24665-2005 EPSenergy efficiency requirements

Over-voltage

Over-current

Short-circuit

Thermal shutdown capability

FCC part: 15 class B

EN55022: class B

AS/NZS3548/AS/NZS4251.1 class B

GB 9254-1998/GB17625.1-2003

ISPR22 class B

CNS13438 class B

EN 55024/A12001

IEC61000-4-2, IEC61000-4-3

IEC61000-4-4, IEC61000-4-5

IEC61000-4-6, IEC61000-4-11

EN 60950: 200

PSE IEC6095

UL60950 3rd edition

AS/NZS 60950:2000

GB4943-2001
