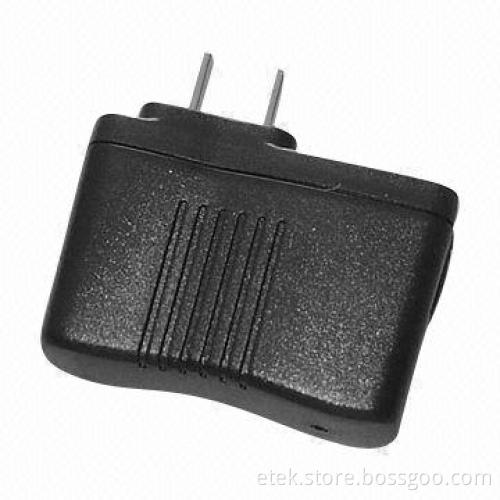

5V/1A Travel Charger with 100 to 240V

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Input/output specifications:

Reliability:

Burn-in: 100% full load, 40, ±5°C, 4hrs minimum
Leakage current: 0.25mA maximum at 264V AC
Withstanding voltage: (between primary and secondary) 3,000V AC 1 minute 10mA at maximum
MTBF: meets MIL-HDBK-217F over 50k hours, full load, 25°C

Emissions and immunity:

Safety approvals:

Input: 100-240v, 50-60Hz

Output voltages: 2.8-7.5V (5% precision)

Output current: 0-1.0A

Maximum output power: 3.3-5.0W

Ripple and noises: 50 - 70mV

Line regulation: ±1%

Load regulation: ±5%

Burn-in: 100% full load, 40, ±5°C, 4hrs minimum

Leakage current: 0.25mA maximum at 264V AC

Withstanding voltage: (between primary and secondary) 3,000V AC 1 minute 10mA at maximum

MTBF: meets MIL-HDBK-217F over 50k hours, full load, 25°C

FCC part15 class B

EN55022 class B

AS/NZS3548, AS/NZS4251.1 class B

GB9254-1998/GB17625.1-2003

ISPR22 class B, CNS13438 class B

EN55024/A1:2001

IEC61000-4-2, IEC61000-4-3

IEC61000-4-4, IEC61000-4-5

IEC61000-4-6, IEC61000-4-11

EN 60950: 2000

PSE IEC6095

UL60950 3rd edition

AS/NZS 60950:2000

CE (low voltage directive)

GB4943-2001
