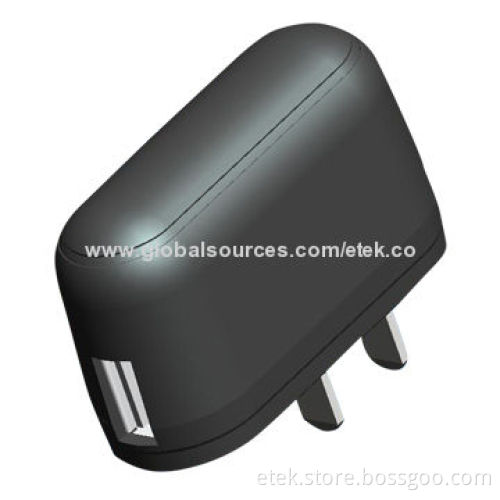

5V/1A USB Mobile Phone Charger with 100 to 240V, 50/60Hz Input and USB Socket

5V/1A USB Mobile Phone Charger with 100 to 240V, 50/60Hz Input and USB Socket

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

Input range: 100 to 240V, 50/60Hz
Output range: 2.8 to 7.5V in (maximum), 0 to 1.0A foroutput current
DC output: USB socket
Output voltage precision:±5%
Regulation line: ±1%
Load: ±5%
Output power range: 3.3 to 5W

Features:

High-reliability
High-efficiency
Consumption meeting US Energy Star/CEC/AS/N24665-2005EPS energy efficiency requirements
Thermal shutdown capability

Protections:

Over-voltage
Over-current
Short-circuit

Emission and immunity:

FCC part: 15 class B
EN55022: class B
AS/NZS3548/AS/NZS4251.1 class B
GB 9254-1998/GB17625.1-2003
ISPR22 class B
CNS13438 class B
EN 55024/A12001
IEC61000-4-2, IEC61000-4-3
IEC61000-4-4, IEC61000-4-5
IEC61000-4-6, IEC61000-4-11

Safety standards:

EN 60950: 200
PSE IEC6095
UL60950 3rd edition
AS/NZS 60950:2000
CE
GB4943-2001

Input range: 100 to 240V, 50/60Hz

Output range: 2.8 to 7.5V in (maximum), 0 to 1.0A foroutput current

DC output: USB socket

Output voltage precision:±5%

Regulation line: ±1%

Load: ±5%

Output power range: 3.3 to 5W

High-reliability

High-efficiency

Consumption meeting US Energy Star/CEC/AS/N24665-2005EPS energy efficiency requirements

Thermal shutdown capability

Over-voltage

Over-current

Short-circuit

FCC part: 15 class B

EN55022: class B

AS/NZS3548/AS/NZS4251.1 class B

GB 9254-1998/GB17625.1-2003

ISPR22 class B

CNS13438 class B

EN 55024/A12001

IEC61000-4-2, IEC61000-4-3

IEC61000-4-4, IEC61000-4-5

IEC61000-4-6, IEC61000-4-11

EN 60950: 200

PSE IEC6095

UL60950 3rd edition

AS/NZS 60950:2000

GB4943-2001
