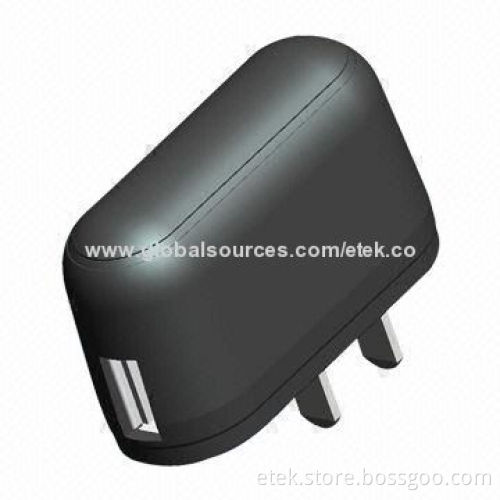

SPC, USB Charger with 5W Power Output/7.5V/1.0A Output, 90-264V Input, White and Black

SPC, USB Charger with 5W Power Output/7.5V/1.0A Output, 90-264V Input, White and Black

Get Latest Price

Payment Type:: Negotiate

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Negotiate

Product Description

Specifications:

Input voltage: 90 to 264V AC
Input current: 0.15A (maximum)
Input frequency range: 47 to 63Hz
Output power: 5W
Output voltage: 2.8 to7.5V DC
Output current: 0 to 1.0A
Output ripple and noise range: 50 to 70mV (maximum)
Operating temperature: -0C to 40°C
Storage temperature: -20 to 65°C
DC cored: 22AWG, length 1.5m or can be customized
Case colors: white and black
Input power cords and output connectors (plug) can customized by customers’ (usual have stereo plug, quick plug, lo plug, USB plug), but all are certified to safety approval respectively

Function and features:

Over-current protection
Over-voltage protection
Short-circuit protection
Thermal shutdown protection
High-reliability: strict burn-in testing: 100% full load, 40+5°C, 4 hours (minimum)
Low-leakage current: 0.25mA at 264V AC
Withstanding voltage: 3,000V AC, 1 minute, 10mA (maximum)
MTBF: meet MIL-HDBK-217F over 50,000 hours, full load, 25°C
High-efficiency: meet US EnergyStar/CEC/AS/N24665-2005 EPS Energy Efficiency requirements
Eco-friendly with RoHS, REACH marks
Light and convenient plug in
Applications: digital cameras, CD/MP3/MP4 players, Communication terminals, tester equipment, PDA mobile phones, other portable devices or machines
Certificates: UL, PSE, CCC, FCC, KC, GS, CE, TUV

Input voltage: 90 to 264V AC

Input current: 0.15A (maximum)

Input frequency range: 47 to 63Hz

Output power: 5W

Output voltage: 2.8 to7.5V DC

Output current: 0 to 1.0A

Output ripple and noise range: 50 to 70mV (maximum)

Operating temperature: -0C to 40°C

Storage temperature: -20 to 65°C

DC cored: 22AWG, length 1.5m or can be customized

Case colors: white and black

Input power cords and output connectors (plug) can customized by customers’ (usual have stereo plug, quick plug, lo plug, USB plug), but all are certified to safety approval respectively

Over-current protection

Over-voltage protection

Short-circuit protection

Thermal shutdown protection

High-reliability: strict burn-in testing: 100% full load, 40+5°C, 4 hours (minimum)

Low-leakage current: 0.25mA at 264V AC

Withstanding voltage: 3,000V AC, 1 minute, 10mA (maximum)

MTBF: meet MIL-HDBK-217F over 50,000 hours, full load, 25°C

High-efficiency: meet US EnergyStar/CEC/AS/N24665-2005 EPS Energy Efficiency requirements

Eco-friendly with RoHS, REACH marks

Light and convenient plug in

Applications: digital cameras, CD/MP3/MP4 players, Communication terminals, tester equipment, PDA mobile phones, other portable devices or machines
