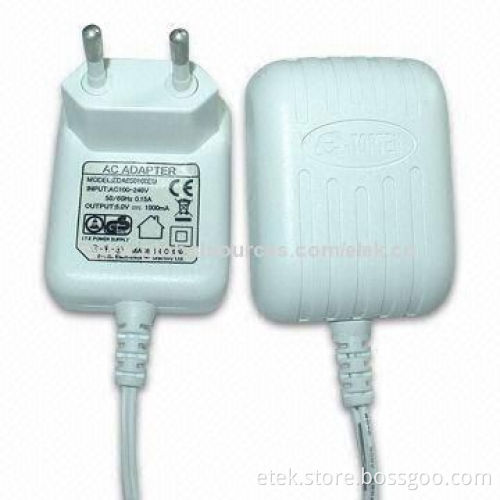

5W AC/DC Switching Power Adapter with Over Current, Short Circuit and Thermal Shutdown Protections

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Protections: over current, over voltage, short circuit and thermal shutdown

Low power waste

Operating temperature: 0 to 40°C

Storage temperature: -20 to 65°C

Operating humidity: 10 to 90% RH

Storage humidity: 10 to 90% RH

Safety standards:

EMC standards: EN55022 class B, AS/NZS3548 class B, ISPR22 class B and CNS13438 class

High efficiency

Energy-saving and long lifespan

Input voltage: 90 to 264V AC

Input current: 0.15A

Input frequency: 47 to 63Hz

Output power: 5W

Output voltage: 2.8 to 24V

Output current: 0 to 1.0A

Output ripple and noise: 50 to 150mV

Dimensions: 55 x 41 x 25mm

Suitable for portable DVD players, MP4, CCTV, GPS, laptops, AV and IT product

Available with SAA, CTICK, CEC, FCC, CCC, GS, CE, UL, PSE and EK approvals

EN60950: 2000

UL60950 3rd edition

PSE

TUV

CCC
