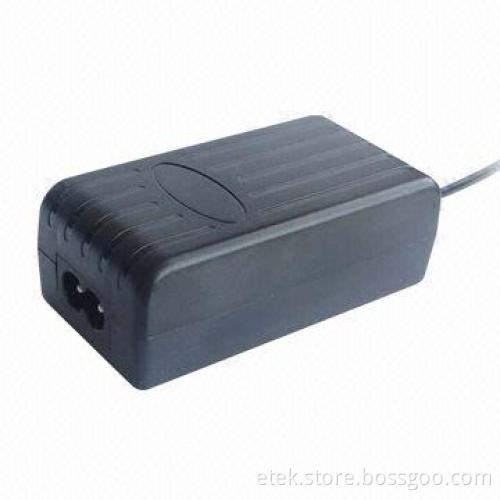

Switching Power Adapter, 20W Maximum Output Power, Available with Australian AC Plug

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

Input: 90-264V, 50 to 60Hz
Output:
- DC output voltage: 2.8-24V (5% precision)
- DC output current: 0-3.0A
- Maximum output power: 9.9-20W
- Ripple and noise: 50-150mV
- Line regulation: ±1%
- Load regulation: ±5%
Adapters applied to digital cameras, CD/MP3, MP4 players, communication terminals, tester equipment, PDA mobile phones and other portable devices or machines
Available with Australian AC plug

Reliability:

Burn-in: 100% full load, 40 ±5°C, 4 hours (minimum)
Leakage current: 0.25mA at 264V AC (maximum)
Withstanding voltage (between primary and secondary): 3,000V AC, 1 minute, 10mA (maximum)
MTBF: meet MIL-HDBK-217F over 50K hours, full load, 25°C

Emission and immunity:

FCC part 15 class B
EN55022 class B
AS/NZS3548, AS/NZS4251.1 class B
GB9254-1998/GB17625.1-2003
ISPR22 class B, CNS13438 class B
EN55024/A1:2001
IEC61000-4-2, IEC61000-4-3
IEC61000-4-4, IEC61000-4-5
IEC61000-4-6, IEC61000-4-11

Input: 90-264V, 50 to 60Hz

Output:

DC output voltage: 2.8-24V (5% precision)
DC output current: 0-3.0A
Maximum output power: 9.9-20W
Ripple and noise: 50-150mV
Line regulation: ±1%
Load regulation: ±5%

Adapters applied to digital cameras, CD/MP3, MP4 players, communication terminals, tester equipment, PDA mobile phones and other portable devices or machines

Available with Australian AC plug

DC output voltage: 2.8-24V (5% precision)

DC output current: 0-3.0A

Maximum output power: 9.9-20W

Ripple and noise: 50-150mV

Line regulation: ±1%

Load regulation: ±5%

Burn-in: 100% full load, 40 ±5°C, 4 hours (minimum)

Leakage current: 0.25mA at 264V AC (maximum)

Withstanding voltage (between primary and secondary): 3,000V AC, 1 minute, 10mA (maximum)

MTBF: meet MIL-HDBK-217F over 50K hours, full load, 25°C

FCC part 15 class B
