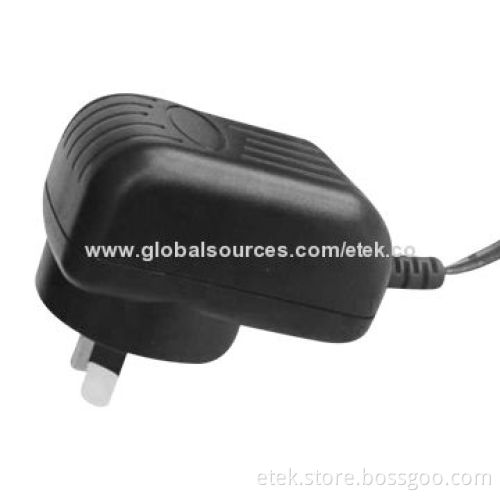

SMPS, PDA, Camera, Portable,Electrical,Home Appliances Adapter with 90-264V Input,8W 30V/1.5A Output
  • SMPS, PDA, Camera, Portable,Electrical,Home Appliances Adapter with 90-264V Input,8W 30V/1.5A Output
  • SMPS, PDA, Camera, Portable,Electrical,Home Appliances Adapter with 90-264V Input,8W 30V/1.5A Output
  • SMPS, PDA, Camera, Portable,Electrical,Home Appliances Adapter with 90-264V Input,8W 30V/1.5A Output
  • SMPS, PDA, Camera, Portable,Electrical,Home Appliances Adapter with 90-264V Input,8W 30V/1.5A Output
  • SMPS, PDA, Camera, Portable,Electrical,Home Appliances Adapter with 90-264V Input,8W 30V/1.5A Output
  • SMPS, PDA, Camera, Portable,Electrical,Home Appliances Adapter with 90-264V Input,8W 30V/1.5A Output
SMPS, PDA, Camera, Portable,Electrical,Home Appliances Adapter with 90-264V Input,8W 30V/1.5A Output
SMPS, PDA, Camera, Portable,Electrical,Home Appliances Adapter with 90-264V Input,8W 30V/1.5A Output
SMPS, PDA, Camera, Portable,Electrical,Home Appliances Adapter with 90-264V Input,8W 30V/1.5A Output
SMPS, PDA, Camera, Portable,Electrical,Home Appliances Adapter with 90-264V Input,8W 30V/1.5A Output
SMPS, PDA, Camera, Portable,Electrical,Home Appliances Adapter with 90-264V Input,8W 30V/1.5A Output
SMPS, PDA, Camera, Portable,Electrical,Home Appliances Adapter with 90-264V Input,8W 30V/1.5A Output

SMPS, PDA, Camera, Portable,Electrical,Home Appliances Adapter with 90-264V Input,8W 30V/1.5A Output

Get Latest Price
Payment Type:
Negotiate
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Negotiate
Product Description
Product Description
  • Specifications:
    • Input voltage: 90 to 264V AC
    • Input current: 0.25A
    • Input frequency range: 47 to 63Hz
    • Output power: 8W
    • Output voltage: 2.8 to 24V DC
    • Output current: 0 to 1.5A
    • Output ripple and noise range: 50mV (maximum)
    • Operating temperature: -0°C to 40°C
    • Storage temperature: -20°C to 65°C
    • DC cored AWG: 20#, 22#, 24#, length 1.5m or can be customized
    • Input power cords and output connectors (plug) can customized by customer (usual have stereo plug, quick plug, lo plug, USB plug), but all are certified to safety approval respectively
  • Function and features:
    • Over-current protection
    • Over-voltage protection
    • Short-circuit protection
    • Thermal shutdown protection
    • High reliability:
      • Strict burn-in testing: 100% full load, 40+5°C, 4hrs min.
      • Low leakage current: 0.25mA at 264V AC
      • Withstanding voltage: 3,000V AC 1 minute 10mA max
      • MTBF: meet MIL-HDBK-217F over 50,000 hours, full load, 25°C
    • High efficiency: meet US energy star/CEC/AS/N24665-2005 EPS energy efficiency requirements
    • With on-line LED power indicator
    • Eco-friendly, with RoHS, REACH
    • Light and convenient plug-in
    • Application: digital camera, CD/MP3/MP4 player, communication terminals, tester equipment, PDA mobile phones, other portable devices or machines
    • Certificate: UL, PSE, CCC, FCC, KC, GS, CE, C-TIK, SA
  • Solution provide according to customers’ products
  • Input voltage: 90 to 264V AC
  • Input current: 0.25A
  • Input frequency range: 47 to 63Hz
  • Output power: 8W
  • Output voltage: 2.8 to 24V DC
  • Output current: 0 to 1.5A
  • Output ripple and noise range: 50mV (maximum)
  • Operating temperature: -0°C to 40°C
  • Storage temperature: -20°C to 65°C
  • DC cored AWG: 20#, 22#, 24#, length 1.5m or can be customized
  • Input power cords and output connectors (plug) can customized by customer (usual have stereo plug, quick plug, lo plug, USB plug), but all are certified to safety approval respectively
  • Over-current protection
  • Over-voltage protection
  • Short-circuit protection
  • Thermal shutdown protection
  • High reliability:
    • Strict burn-in testing: 100% full load, 40+5°C, 4hrs min.
    • Low leakage current: 0.25mA at 264V AC
    • Withstanding voltage: 3,000V AC 1 minute 10mA max
    • MTBF: meet MIL-HDBK-217F over 50,000 hours, full load, 25°C
  • High efficiency: meet US energy star/CEC/AS/N24665-2005 EPS energy efficiency requirements
  • With on-line LED power indicator
  • Eco-friendly, with RoHS, REACH
  • Light and convenient plug-in
  • Application: digital camera, CD/MP3/MP4 player, communication terminals, tester equipment, PDA mobile phones, other portable devices or machines
  • Certificate: UL, PSE, CCC, FCC, KC, GS, CE, C-TIK, SA
  • Strict burn-in testing: 100% full load, 40+5°C, 4hrs min.
  • Low leakage current: 0.25mA at 264V AC
  • Withstanding voltage: 3,000V AC 1 minute 10mA max
  • MTBF: meet MIL-HDBK-217F over 50,000 hours, full load, 25°C
