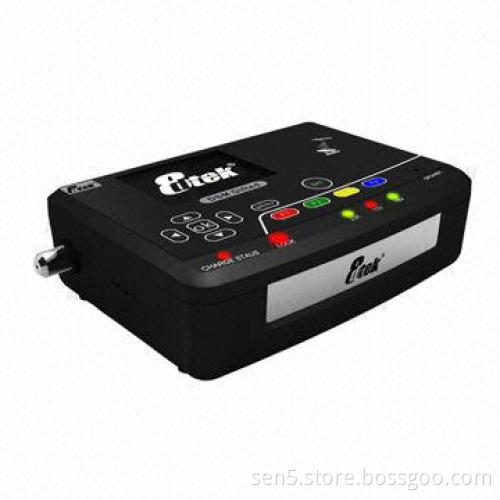

DVB-S2 Satellite Signal Meter, BER, S/N, MER, FEC Measurers
  • DVB-S2 Satellite Signal Meter, BER, S/N, MER, FEC Measurers
  • DVB-S2 Satellite Signal Meter, BER, S/N, MER, FEC Measurers
DVB-S2 Satellite Signal Meter, BER, S/N, MER, FEC Measurers
DVB-S2 Satellite Signal Meter, BER, S/N, MER, FEC Measurers

DVB-S2 Satellite Signal Meter, BER, S/N, MER, FEC Measurers

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Highlights:
    • DVB-S2
    • BER, S/N, MER, FEC measurement
    • 2.4-inch display
    • AV out/RS232
    • USB
  • Features:
    • Installation meter and full measurement for DVB-S2
    • BER, S/N, MER, FEC measurement
    • Auto search, blind search, NIT search, manual search
    • Auto DiSEqC1.0/1.1/1.2, USALS
    • MDU and unicable
    • Easy upgrading by USB and RS232 port
    • Satellite list editable by editor via PC
  • Specifications:
    • System capabilities
    • DVB-S/S2 compliant: supported
    • LNB/tuner: input for DVB-S/S2
    • Connector: F type, male
    • Frequency range: 950 to 2,150MHz
    • Signal lever: -65 to -25dBm
    • LNB supply: 13/18V (maximum 500mA)
    • LNB switch control: 22kHz
    • Impedance: 75Ω
    • Demodulator for DVB-S/S2
    • Front end: QPSK (DVB-S) 8PSK (DVB-S2)
    • Symbol rate: 2 to 45Mbps (DVB-S), 2 to 30Mbps (DVB-S2)
    • SCPC and MCPC capable: supported
    • Spectral inversion: auto conversion
  • System resource:
    • Processor: 32-bit
    • SDRAM: 16MB
    • Flash: 2MB
    • Video decoder
    • MPEG 2: main profile at main level
    • Data rate: up to 15MB/second
    • Resolution: 720 x 576, 720 x 480 pixels
    • Video format: PAL/NTSC/SECAM
    • MPEG: audio
    • MPEG 1 layer: 1 and 2
    • Type: mono
    • Sampling rates: 32, 44.1 and 48kHz
  • Port:
    • Connector: USB, RS232, AV-out and DC
  • Power supply:
    • Li-ion battery: 2,000mAh
    • Voltage supply: 13.3V
    • Charger: 90 to 240V
  • Panel connectors:
    • Digital tuner input: F type, male
  • Physical specifications:
    • Size (W x D x H): 139 x 99 x 37mm
    • Weight: 0.44kg
  • Monitor:
    • Display screen: 2.4-inch TFT
    • Signal strength display: supported
  • DVB-S2
  • BER, S/N, MER, FEC measurement
  • 2.4-inch display
  • AV out/RS232
  • USB
  • Installation meter and full measurement for DVB-S2
  • BER, S/N, MER, FEC measurement
  • Auto search, blind search, NIT search, manual search
  • Auto DiSEqC1.0/1.1/1.2, USALS
  • MDU and unicable
  • Easy upgrading by USB and RS232 port
  • Satellite list editable by editor via PC
  • System capabilities
  • DVB-S/S2 compliant: supported
  • LNB/tuner: input for DVB-S/S2
  • Connector: F type, male
  • Frequency range: 950 to 2,150MHz
  • Signal lever: -65 to -25dBm
  • LNB supply: 13/18V (maximum 500mA)
  • LNB switch control: 22kHz
  • Impedance: 75Ω
  • Demodulator for DVB-S/S2
  • Front end: QPSK (DVB-S) 8PSK (DVB-S2)
  • Symbol rate: 2 to 45Mbps (DVB-S), 2 to 30Mbps (DVB-S2)
  • SCPC and MCPC capable: supported
  • Spectral inversion: auto conversion
  • Processor: 32-bit
  • SDRAM: 16MB
  • Flash: 2MB
  • Video decoder
  • MPEG 2: main profile at main level
  • Data rate: up to 15MB/second
  • Resolution: 720 x 576, 720 x 480 pixels
  • Video format: PAL/NTSC/SECAM
  • MPEG: audio
  • MPEG 1 layer: 1 and 2
  • Type: mono
  • Sampling rates: 32, 44.1 and 48kHz
  • Connector: USB, RS232, AV-out and DC
  • Li-ion battery: 2,000mAh
  • Voltage supply: 13.3V
  • Charger: 90 to 240V
  • Digital tuner input: F type, male
  • Size (W x D x H): 139 x 99 x 37mm
  • Weight: 0.44kg
  • Display screen: 2.4-inch TFT
  • Signal strength display: supported
