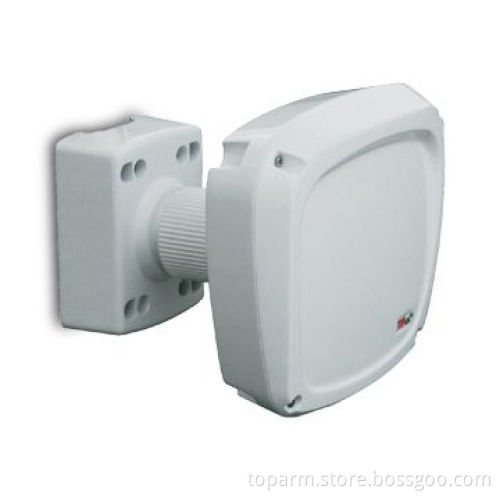

Perimeter Microwave Barrier with Up to 228m Detection Range and Sensitivity Adjustment

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

High-end outdoor perimeter microwave barriers

Volumetric barrier detection zone: three-dimensional protectionzone, not just beams zone

IP65 rated vandal-proof housing

Working temperatures: -40 to 65ºC

4 crystal-controlled modulation channels

Four installation options

Microwave frequency: 9.5/10.525GHz

Modulating frequency: 4 channels (for M-200MT)

Maximum length of protection zone: outdoor 228m (750ft)

Maximum width of protection zone: 2 or 3.5m

Maximum height of protection zone: 2.5 or 4.5m

Sensitivity: high/low 2 grades for option

Ground unevenness: 0.3m

Height of obstacles:

Working temperatures: -40 to 65°C (-40 to 149°F)

Waterproof: IP65

Dimensions: 156.6 x 138.4 x 46.5mm

Weight (per set): 1.1kg

Grass: 0.3m

Snow: 0.5m
