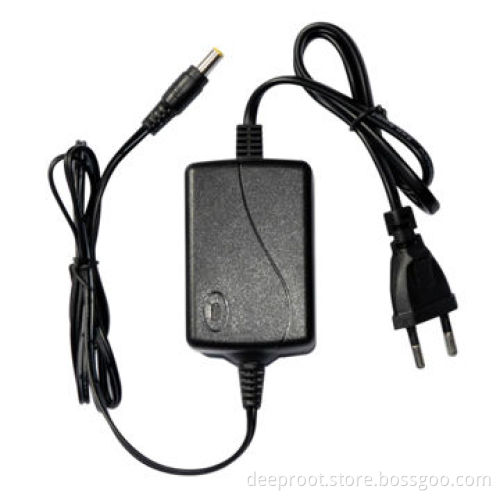

Worldwide-sold Switching Adapter with 18W Maximum Power and 100 to 240V AC, 50/60Hz Input Voltage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Input connecting plug: USA/EUR/UK/AUS/others,70cm/optional

Input voltage: 100 to 240V AC, 50/60Hz

Output connector: 5.5 x 2.1mm/others, 90cm/others

Output voltage: 3 to 24V DC +/-5%

Maximum power: 18W

Ripple wave (mVp-p): <1%

Linear modulate: ±0.5% maximum

Temperature coefficient: ±0.02%/°C

Start time: d3s (240V AC input, io=100%)

Guard time: e20ms (240V AC input, io=100%)

Output standard: 12V at 1A

Protection override protection: 115 to 200%VA, automaticrecovery

Short-circuit protection 1 channel: automatic recovery

Insulation strength: 1,500V AC/10mA, 1min

Environment working temperature: 0 to 40°C, 10 to 90%RH

Store temperature: -20 to 60°C, 10 to 90% RH

Dimensions: 74 x 50 x 29mm

Net weight: 99g
