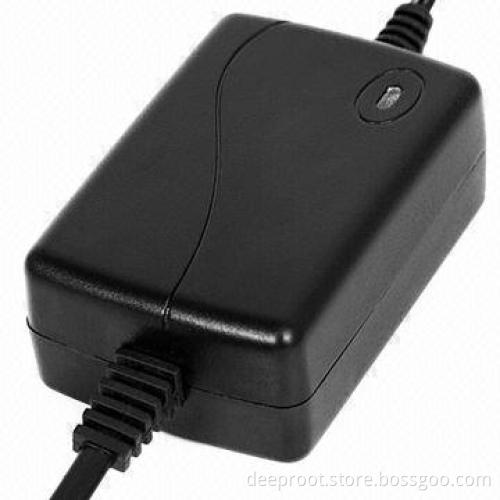

Switching Power Supply for CCTV Camera with 18W Maximum Power, 100 to 240V AC Input Voltage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Input connecting plugs: US/EUR/UK/AUS and more 70cm(optional)

Input voltages: 100 to 240V AC, 50 to 60Hz

Output connector: 5.5 x 2.1mm and more, 90cm and more

Output voltages: 3 to 24V DC, ±5%

Maximum power: 18W

Ripple wave (mVp-p): <1%

Linear modulate: ±0.5% (maximum)

Temperature coefficient: ±0.02%/°C

Start time: d3-second (240V AC input, io=100%)

Guard time: e20ms (240V AC input, io=100%)

Output standard: 12V, 1A/12V, 1.5A

Override protection: 115 to 200% VA, automatic recovery

Short-circuit protection 1 channel: automatic recovery

Insulation strength: 1,500V AC/10mA, 1 minute

Environment working temperatures: 0 to 40°C, 10 to 90%RH

Store temperatures: -20 to 60°C, 10 to 90% RH

Dimensions: 74 x 50 x 29mm

Net weight: 99g
