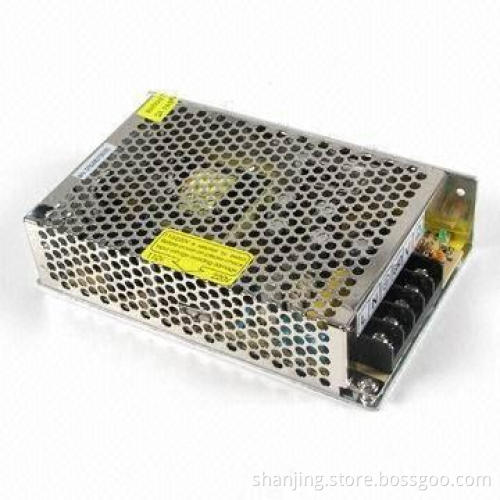

Switching Power Supply with High Reliability, Widely Used in Industrial Equipment

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

High reliability
Built-in over voltage, current and short-circuitprotection
Input voltage: 100 to 240V AC
Output voltage: 5V
Output current: 12A
Ripple: ≤1%
Efficiency: >75%

Input:

110/220V AC ±15%

Frequency: 50/60Hz

Line regulation: ±0.5 maximum

Start up current: 40A/230V AC

Input current: <1.2A

High reliability

Built-in over voltage, current and short-circuitprotection

Input voltage: 100 to 240V AC

Output voltage: 5V

Output current: 12A

Ripple: ≤1%

Efficiency: >75%

Output:

Line regulation: ±0.5% max

Ripple and noise: <1% (mVp-p)

Adjustable range of voltage: +5 and -3%

Start-up time: ≤1second (AC input 240V and Io=100%)

Hold-up time: ≥20m/second (AC input 240V and Io=100%)

Protection:

Over loading: 115 to 150% of rated power

Power shuts down automatically during over loadingconditions

Power recovers itself

Over voltage: 130 to 150% of rated voltage

Short-circuit protection:

Insulation intensity:

Input and output: 1,500V AC/5mA, 60 seconds
Input and ground: 1,500V AC/5mA, 60 seconds
Output and ground: 500V AC/5mA, 60 seconds

Insulation resistance:

Input and output: ≥50mΩ, 500V AC DC
Input and ground: ≥50mΩ, 500V AC DC
Output and ground: ≥50mΩ, 500V AC DC

Input and output: 1,500V AC/5mA, 60 seconds

Input and ground: 1,500V AC/5mA, 60 seconds

Output and ground: 500V AC/5mA, 60 seconds

Input and output: ≥50mΩ, 500V AC DC

Input and ground: ≥50mΩ, 500V AC DC

Output and ground: ≥50mΩ, 500V AC DC

Environmental requirements:

Operating temperature: 0 to 40 degrees Celsius

Operating humidity: 10 to 90% RH (no freezing dew)

Storage temperature: -20 to 85 degrees Celsius

Storage humidity: 10 to 95% RH (no freezing dew)

Elevation: <3,000m

Dimensions: (L) 159 x (W) 97 x (H) 38mm

Weight: 550g
