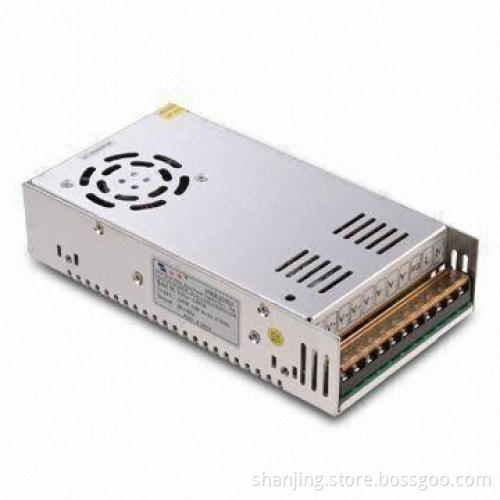

AC/DC Switching Power Supply, Used for Industry Equipment

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Input:

Voltage: 110/220V AC ±15%
Frequency: 50/60Hz
Line regulation range: ±0.5 (maximum)
Start up current: 40A/230V AC
Input current:
Output:
- Line regulation range: ±0.5% (maximum)
- Ripple and noise (mVp-p): Adjustable range of output voltage: +5%, -3%
- Start-up time: ≤1s (AC input 240V and Io=100%)
- Hold-up time: ≥20ms (AC input 240V and Io=100%)
Protections:
- Overload: 115 to 150% of rated power, when it happened, power shuts down automatically, when trouble removed power recovers itself
- Over-voltage: 130 to 150% of rated voltage
- Short-circuit protection
Insulation intensity:
- Input to output: 1,500V AC/5mA, 60s
- Input to ground: 1,500V AC/5mA, 60s
- Output to ground: 500V AC/5mA, 60s
Insulation resistance:
- Input to output: ≥50mΩ, 500V DC
- Input to ground: ≥50mΩ, 500V DC
- Output to ground: ≥50mΩ, 500V DC
Environmental requirements:
- Operating temperature: 0 to 40 degrees Celsius
- Operating humidity: 10 to 90% RH (no freezing dew)
- Storage temperature: -20 to 85 degrees Celsius
- Storage humidity: 10 to 95% RH (no freezing dew)
Elevation: Dimensions: 230 x 115 x 50mm
Weight: 930g
EMC: EN55022B and GB9254

Voltage: 110/220V AC ±15%

Frequency: 50/60Hz

Line regulation range: ±0.5 (maximum)

Start up current: 40A/230V AC

Input current:

Output:

Protections:

Overload: 115 to 150% of rated power, when it happened, power shuts down automatically, when trouble removed power recovers itself
Over-voltage: 130 to 150% of rated voltage
Short-circuit protection

Insulation intensity:
