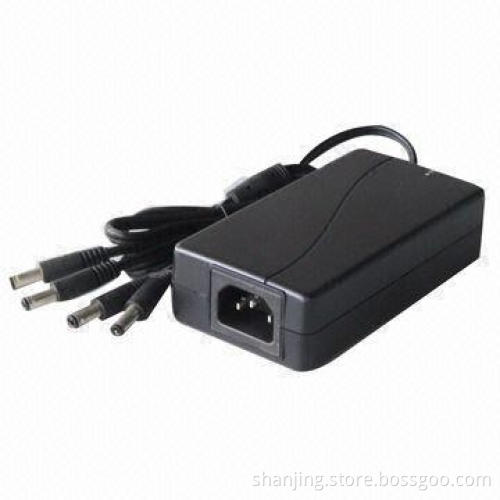

Laptop DC Adapter, 60W, 12V, 5A, 4-way Switching Power Supply for CCTV Monitor

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Features:

High price-effective, reliability with plastic crust
Built-in over voltage,over current and short-circuit protection
CE,CCC, UL marks

Input:

AC 100 to 240V
Frequency: 50/60Hz 1.2A
Line regulation range: ±0.5max
Start-up current: 40A/230V AC

Output:

Line regulation range: ±0.5% max
Ripple and noise (mVp-p): Adjustable range of output voltage: +5%, -3%
Start-up time: ≤1s (AC input 240V and Io=100%)
Hold-up time: ≥20ms (AC input 240V and Io=100%)

Protection:

Over loading protection: 115 to 150% of rated power, when it happened, the power shuts down automatically; when trouble removed the power recovers itself
Over voltage protection: 130 to 150% of rated voltage
Short-circuit protection

Insulation intensity:

Input-output: 3000V/10mA, 60s

Insulation resistance:

Input-output: ≥50mΩ, DC500V

Environmental requirements:

Operating temperature: 0 to 40°C
Operating humidity: 10 to 90% RH (no freezing dew)
Storage temperature: -20 to 85°C
Storage humidity: 10 to 95% RH (no freezing dew)

Elevation: Dimensions (L x W x H): 122 x 60 x 37mm

Weight: 300g

EMC: EN55022B, GB9254

High price-effective, reliability with plastic crust

Built-in over voltage,over current and short-circuit protection

CE,CCC, UL marks

AC 100 to 240V

Frequency: 50/60Hz 1.2A

Line regulation range: ±0.5max

Start-up current: 40A/230V AC

Line regulation range: ±0.5% max

Ripple and noise (mVp-p): Adjustable range of output voltage: +5%, -3%

Start-up time: ≤1s (AC input 240V and Io=100%)

Hold-up time: ≥20ms (AC input 240V and Io=100%)

Over loading protection: 115 to 150% of rated power, when it happened, the power shuts down automatically; when trouble removed the power recovers itself

Over voltage protection: 130 to 150% of rated voltage

Short-circuit protection

Operating temperature: 0 to 40°C

Operating humidity: 10 to 90% RH (no freezing dew)

Storage temperature: -20 to 85°C

Storage humidity: 10 to 95% RH (no freezing dew)
