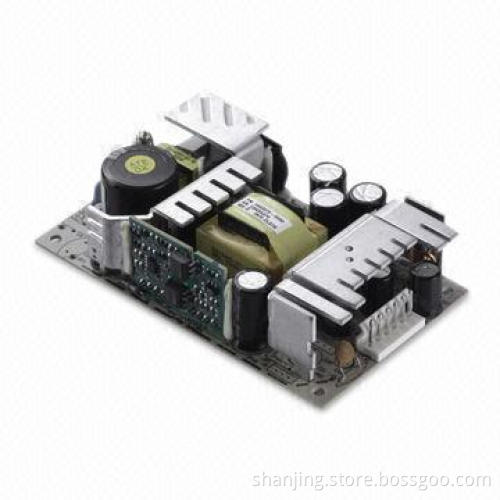

Metal Case Switch Power Supply with Built-in Transformer, CE and CCC Marks, Measures 127 x 77 x 35mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Features:

Specifications:

Input:
- Voltage: 90 to 264V AC±15%
- Frequency: 50/60Hz, less than 1.2A
- Maximum line regulation range: ±0.5%
- Start up current: 40A/230V AC
Output:
- Maximum line regulation range: ±0.5%
- Ripple and noise: less than 1% (mVp-p) of output voltage
- Adjustable range of output voltage: ±3%
- Start-up time: ≤1s (input 240V AC and Io = 100%)
- Hold-up time: ≥20ms (input 240V AC and Io = 100%)
- Temperature quotient: ±0.02%/°C
Protections:
- Over loading: 115 to 150% of rated power, when it happened, the power shuts down automatically and when trouble removed the power recovers itself
- Over-voltage: 130 to 150% of rated voltage
- Short-circuit protection
Insulation intensity:
- Input to output: 1,500V/5mA, 60 seconds
- Input to ground: 1,500V/5mA, 60 seconds
- Output to ground: 1,500V/5mA, 60 seconds
Insulation resistance:
- Input to output: ≥50mΩ, 500V DC
- Input to ground: ≥50mΩ, 500V DC
- Output to ground: ≥50mΩ, 500V DC
Environment requirement:
- Temperature:
  - Operating: 0 to +40°C
  - Storage: -20 to +85°C
- Humidity:
  - Operating: 10 to 90% RH (no freezing dew)
  - Storage: 10 to 95% RH (no freezing dew)
Elevation: less than 3,000m
EMC: EN55022B and GB9254
Dimensions (L x W x H): 127 x 77 x 35mm
Weight: 235g

Reliability

With industry standards

Built-in over-voltage, over-current and short-circuit protections

CE and CCC certified
