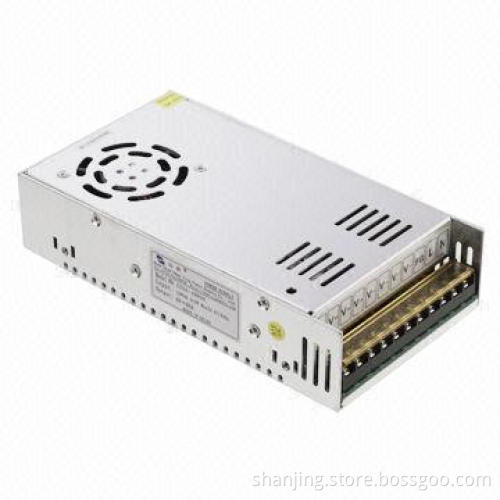

Power Supply, 360W, Single Output, 100 to 240V AC Input Voltage, 12V, 30A, UL, FCC, CUL, RoHS Marks

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Features:

Specifications:

Input:
- Voltage: 110V/220V AC ±15%, 100 to 240V AC
- Frequency: 50/60Hz at 2A
- Line regulation range: ±0.5 (maximum)
- Start-up current: 40A/230V AC, 12V, 30A
Output:
- Line regulation range: ±0.5% (maximum)
- Ripple and noise (mVp-p): <1% of output voltage
- Adjustable range of output voltage: ±3%
- Start-up time: ≤1 second (AC input 240V and Io = 100%)
- Hold-up time: ≥20ms (AC input 240V and Io = 100%)
- Temperature quantity: ±0.02%/°C
Protections:
- Overloading protection: 115 to 150% of rated power, when ithappened, power shuts down automatically and when trouble removedpower recovers itself
- Over-voltage protection: 130 to 150% of rated voltage
- Short-circuit protection
Insulation intensity:
- Input/output: 1,500V/5mA, 60 seconds
- Input/ground: 1,500V/5mA, 60 seconds
- Output/ground: 1,500V/5mA, 60 seconds
Insulation resistance:
- Input/output: ≥50mΩ, 500V DC
- Input/ground: ≥50mΩ, 500V DC
- Output/ground: ≥50mΩ, 500V DC
Environment requirement:
- Operating temperature: 0 to 40°C
- Operating humidity: 10 to 90% RH (no freezing dew)
- Storage temperature: -20 to 85°C
- Storage humidity: 10 to 95% RH (no freezing dew)
Elevation: <3,000m
Dimensions (L x W x H): 230 x 115 x 50mm
Weight: 930g
EMC: EN55022 and GB9254

Reliability with industry standards

Built-in over-voltage, over-current and short-circuitprotections

With CE and CCC marks

Input:

Output:

Protections:

Overloading protection: 115 to 150% of rated power, when ithappened, power shuts down automatically and when trouble removedpower recovers itself
Over-voltage protection: 130 to 150% of rated voltage
Short-circuit protection

Insulation intensity:
