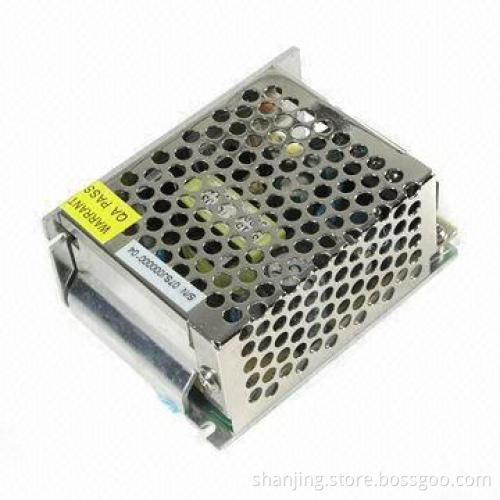

24W AC/DC Switching Power Supply, Metal Case, for CCTV Security Camera Device
  • 24W AC/DC Switching Power Supply, Metal Case, for CCTV Security Camera Device
  • 24W AC/DC Switching Power Supply, Metal Case, for CCTV Security Camera Device
24W AC/DC Switching Power Supply, Metal Case, for CCTV Security Camera Device
24W AC/DC Switching Power Supply, Metal Case, for CCTV Security Camera Device

24W AC/DC Switching Power Supply, Metal Case, for CCTV Security Camera Device

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Features:
    • High-reliability with industry standards
    • Built-in over voltage, over-current and short-circuitprotections
  • Input:
    • Voltage: 90 or 264V AC ±15%
    • Frequency: 50/60Hz
    • Maximum line regulation range: ±0.5
    • Start-up current: 40A at 230V AC
    • Input current: 0.8A
  • Output:
    • Maximum line regulation range: ±0.5%
    • Ripple and noise: <1% of output voltage
    • Adjustable range of output voltage: 5% and -3%
    • Start-up time: ≤1 seconds (AC input: 240V and IO: 100%)
    • Hold-up time: ≥20 minutes (AC input: 240V and IO: 100%)
  • Protections:
  • Overloading protection: 115 to 150% of rated power
  • Over-voltage protections: 130 to 150% of rated voltage
  • Short circuit protection
  • High-reliability with industry standards
  • Built-in over voltage, over-current and short-circuitprotections
  • Voltage: 90 or 264V AC ±15%
  • Frequency: 50/60Hz
  • Maximum line regulation range: ±0.5
  • Start-up current: 40A at 230V AC
  • Input current: 0.8A
  • Maximum line regulation range: ±0.5%
  • Ripple and noise: <1% of output voltage
  • Adjustable range of output voltage: 5% and -3%
  • Start-up time: ≤1 seconds (AC input: 240V and IO: 100%)
  • Hold-up time: ≥20 minutes (AC input: 240V and IO: 100%)
  • Withstanding voltages:
  • Input to output: 1,500V AC/5mA, 60 seconds
  • Input to ground: 1,500V AC/5mA, 60 seconds
  • Output to ground: 500V AC/5mA, 60 seconds
  • Insulation resistances:
  • Input to output: ≥50mΩ, 500V AC
  • Input to ground: ≥50mΩ, 500V AC
  • Output to ground: ≥50mΩ, 500V AC
  • Environmental requirements:
  • Operating temperatures: 0 to 40°C
  • Operating humidity range: 10 to 90%RH (no freezing dew)
  • Storage temperatures: -20 to 85°C
  • Storage humidity range: 10 to 95%RH (no freezing dew)
  • Elevation: <3,000m
  • Dimensions (L x W x H): 88 x 58 x 38mm
  • Weight: 150g
  • EMC: EN55022B and GB9254
