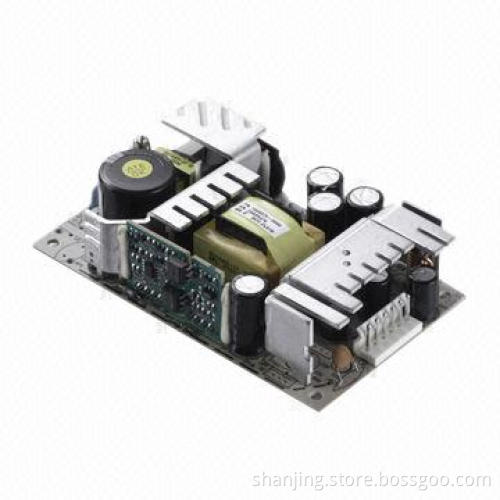

Dual Output Open Frame Power Supply with 90-264V AC 72 Watts for CCTV Power Device

Dual Output Open Frame Power Supply with 90-264V AC 72 Watts for CCTV Power Device

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Features:

65W dual output 5V 7A and 12V 2.5A
High price-effective, reliability with industry standards
Built-in over voltage, over-current and short-circuitprotections
With CE and CCC certificates
Input:
- Universal AC voltage
- Frequency: 50/60Hz
- Line regulation range: maximum +/- 0.5%
Output:
- Line regulation range: maximum +/- 0.5%
- Ripple and noise (Vpp): <1% of output voltage
- Adjustable range of output voltage: +/-3%
- Turn-on time: ≤ 1s at AC input 240V and Io=100%
- Hold-up time: ≥ 20ms at AC input 240V and Io=100%
Protection:
- Over loading protection: 115 to 150% of rated power, when ithappened, the power shuts down automatically, when trouble removedthe power recovers itself
- Over-voltage protection: 130 to 150% of rated voltage
- Over-current protection
Insulated intensity:
- In-out: 1,500V/5mA, 60s
- In-ground: 1,500V/5mA, 60s
- Out-ground: 500V/5mA, 60s
Insulated resistance:
- In-out: ≥ 50m Ohms, 500V DC
- In-ground: ≥ 50m Ohms, 500V DC
- Out-ground: ≥ 50m Ohms, 500V DC
Environmental requirements:
- Operating temperatures: 0 to 40 degrees C
- Operating humidity range: 10 to 90% RH (no freezing dew)
- Storage temperatures: -20 to 85 degrees C
- Storage humidity range: 10 to 95% RH (no freezing dew)
Elevation: <3,000m
Dimensions (L x W x H): 127 x 77 x 35mm
Weight: 235g
EMC: EN55022, GB3954

65W dual output 5V 7A and 12V 2.5A

High price-effective, reliability with industry standards

Built-in over voltage, over-current and short-circuitprotections

With CE and CCC certificates

Input:

Universal AC voltage
Frequency: 50/60Hz
Line regulation range: maximum +/- 0.5%

Output:

Line regulation range: maximum +/- 0.5%
Ripple and noise (Vpp): <1% of output voltage
Adjustable range of output voltage: +/-3%
Turn-on time: ≤ 1s at AC input 240V and Io=100%
Hold-up time: ≥ 20ms at AC input 240V and Io=100%

Protection:

Over loading protection: 115 to 150% of rated power, when ithappened, the power shuts down automatically, when trouble removedthe power recovers itself
Over-voltage protection: 130 to 150% of rated voltage
Over-current protection

Insulated intensity:

In-out: 1,500V/5mA, 60s
In-ground: 1,500V/5mA, 60s
Out-ground: 500V/5mA, 60s

Insulated resistance:

In-out: ≥ 50m Ohms, 500V DC
In-ground: ≥ 50m Ohms, 500V DC
Out-ground: ≥ 50m Ohms, 500V DC

Environmental requirements:

Operating temperatures: 0 to 40 degrees C
Operating humidity range: 10 to 90% RH (no freezing dew)
Storage temperatures: -20 to 85 degrees C
Storage humidity range: 10 to 95% RH (no freezing dew)

Elevation: <3,000m

Dimensions (L x W x H): 127 x 77 x 35mm

Weight: 235g

EMC: EN55022, GB3954
