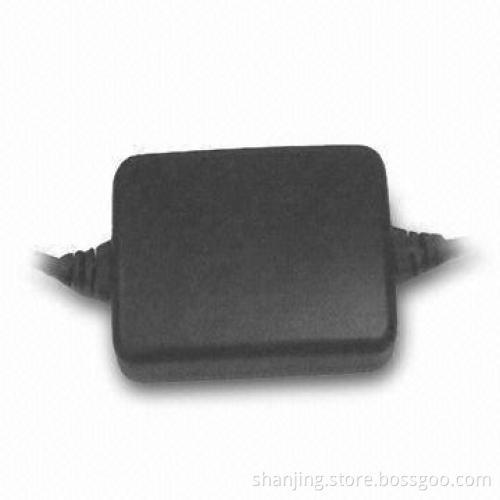

DC-DC Converter with 8 to 32V DC Input Voltage and Short Circuit Protection

DC-DC Converter with 8 to 32V DC Input Voltage and Short Circuit Protection

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Input:

Voltage: 8 to 32V DC
DC rush current: cold start, 40A at 320V
Frequency: 50 to 400Hz
Input current: 12A

Output:

Output range: +1%, -1% rated output voltage
Ripple and noise (mVp-p): 1% of output voltage
Line regulation range: 0.5% (maximum)
Start-up time: less than 1s (DC input 24V and Io=100%)
Hold-up time: more than 20ms (DC input 24V and Io=100%)

Protection:

Overloading protection: 115 to 150% hiccup mode, auto sensing
Over voltage protection: 130 to 150% rated output voltage
Short circuit protection

Withstand voltage:

I/P-O/P: NC
I/P- F/G: NC
O/P-F/G: NC

Insulation resistance:

I/P-O/P: NC
I/P- F/G: NC
O/P-F/G: NC

Environmental requirements:

Operating temperature: 0 to 40°C
Operating humidity: 10 to 90% RH (no freezing dew)
Storage temperature: -20 to 85°C
Storage humidity: 10 to 95% RH (no freezing dew)
Elevation: less than 3,000m
Dimensions: 50 x 30 x 15mm
Weight: 70g
EMC: EN55022B and GB9254

Voltage: 8 to 32V DC

DC rush current: cold start, 40A at 320V

Frequency: 50 to 400Hz

Input current: 12A

Output range: +1%, -1% rated output voltage

Ripple and noise (mVp-p): 1% of output voltage

Line regulation range: 0.5% (maximum)

Start-up time: less than 1s (DC input 24V and Io=100%)

Hold-up time: more than 20ms (DC input 24V and Io=100%)

Overloading protection: 115 to 150% hiccup mode, auto sensing

Over voltage protection: 130 to 150% rated output voltage

Short circuit protection

I/P-O/P: NC

I/P- F/G: NC

O/P-F/G: NC

I/P-O/P: NC

I/P- F/G: NC

O/P-F/G: NC

Operating temperature: 0 to 40°C

Operating humidity: 10 to 90% RH (no freezing dew)

Storage temperature: -20 to 85°C

Storage humidity: 10 to 95% RH (no freezing dew)

Elevation: less than 3,000m

Dimensions: 50 x 30 x 15mm

Weight: 70g

EMC: EN55022B and GB9254
