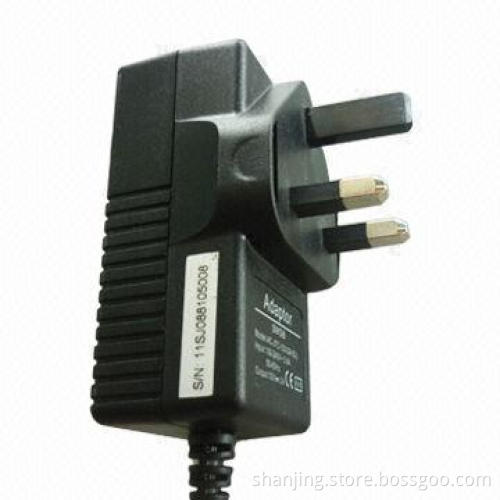

UK Plug 24W/12V/2A Switching LED Power Supply for LED Strips, Screens and CCTV Cameras
  • UK Plug 24W/12V/2A Switching LED Power Supply for LED Strips, Screens and CCTV Cameras
  • UK Plug 24W/12V/2A Switching LED Power Supply for LED Strips, Screens and CCTV Cameras
UK Plug 24W/12V/2A Switching LED Power Supply for LED Strips, Screens and CCTV Cameras
UK Plug 24W/12V/2A Switching LED Power Supply for LED Strips, Screens and CCTV Cameras

UK Plug 24W/12V/2A Switching LED Power Supply for LED Strips, Screens and CCTV Cameras

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Specifications:
    • Input voltages: 100 to 240V AC
    • Output voltage: 12V DC/1.5A
    • AC input between the two poles
    • SCP/OCP/OVP/OTP
    • Class II standard, high insulation
    • Power consumption (without load) is less than 0.5W)
    • Warranty: 1 year
    • Compliant with RoHS Directive
    • Power: 24W
    • Working temperatures: -10 to 40°C
    • Storage temperatures: -25 to 75°C
    • Related humidity range: 20 to 90% RH
    • Cooling method: cooling by air convection
    • Elevation: ≤3,000m
  • Electric characteristics:
    • Input:
      • Rated input voltages: 100 to 240V AC
      • Voltage ranges: 90 to 264V AC
      • Current: less than 0.8A
      • Power consumption: 0.5W
      • Frequency range: 50 to 60Hz
      • Efficiency: ≥75%
    • Output:
      • Voltage without load: 12V DC 5%
      • Load range: 0 to 1.5A
      • Ripple: 30mV
      • Peak: ≤80mV
      • Start time: ≤3 seconds, 220V AC, 100%
      • Hold up time: ≥20 milliseconds, 220V AC, 100%
    • Protections:
      • OCP: rated current 150 to 200%
      • SCP: short circuit power 0.5W, recoverable
      • OVP: 13V (unrecoverable)
  • Input voltages: 100 to 240V AC
  • Output voltage: 12V DC/1.5A
  • AC input between the two poles
  • SCP/OCP/OVP/OTP
  • Class II standard, high insulation
  • Power consumption (without load) is less than 0.5W)
  • Warranty: 1 year
  • Compliant with RoHS Directive
  • Power: 24W
  • Working temperatures: -10 to 40°C
  • Storage temperatures: -25 to 75°C
  • Related humidity range: 20 to 90% RH
  • Cooling method: cooling by air convection
  • Elevation: ≤3,000m
  • Input:
    • Rated input voltages: 100 to 240V AC
    • Voltage ranges: 90 to 264V AC
    • Current: less than 0.8A
    • Power consumption: 0.5W
    • Frequency range: 50 to 60Hz
    • Efficiency: ≥75%
  • Output:
    • Voltage without load: 12V DC 5%
    • Load range: 0 to 1.5A
    • Ripple: 30mV
    • Peak: ≤80mV
    • Start time: ≤3 seconds, 220V AC, 100%
    • Hold up time: ≥20 milliseconds, 220V AC, 100%
  • Protections:
    • OCP: rated current 150 to 200%
    • SCP: short circuit power 0.5W, recoverable
    • OVP: 13V (unrecoverable)
  • Rated input voltages: 100 to 240V AC
  • Voltage ranges: 90 to 264V AC
  • Current: less than 0.8A
  • Power consumption: 0.5W
  • Frequency range: 50 to 60Hz
  • Efficiency: ≥75%
  • Voltage without load: 12V DC 5%
  • Load range: 0 to 1.5A
  • Ripple: 30mV
  • Peak: ≤80mV
  • Start time: ≤3 seconds, 220V AC, 100%
  • Hold up time: ≥20 milliseconds, 220V AC, 100%
  • OCP: rated current 150 to 200%
  • SCP: short circuit power 0.5W, recoverable
  • OVP: 13V (unrecoverable)
