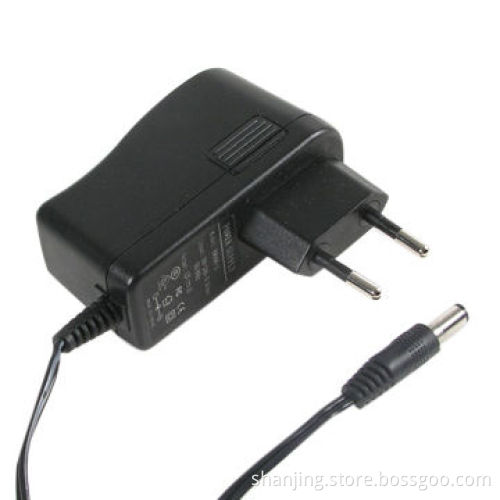

AC/DC Adapter with 12V/1A Output Standard, 12W Maximum Output Power

AC/DC Adapter with 12V/1A Output Standard, 12W Maximum Output Power

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Features:

High-price effective, reliability with plastic crust
Built-in over-voltage, over-current and short-circuit protections
With CE, FCC, CCC marks
Inputs:
- Voltage range: 100 to 240V AC
- Frequency range: 50 to 60Hz 1A
- Line regulation range: ± 0.5 (maximum)
- Start up current: 40A/230V AC
Output:
- Line regulation range: ± 0.5% (maximum)
- Ripple and noise (mVp-p): <1% of output voltage
- Adjustable range of output voltage: +5, -3%
- Start-up time: ≤ 1 second (input 240V AC and Io=100%)
- Hold-up time: ≥ 20ms (input 240V AC and Io=100%)
Protections:
- Over-loading protections: 115 to 150% of rated power, when it happened, the power shuts down automatically, when trouble removed the power recovers itself
- Over-voltage protections: 130 to 150% of rated voltage
- Short-circuit protection
- Insulation intensity:
  - Input to output: 3,000V/10mA, 60 seconds
- Insulation resistance:
  - Input to output: ≥ 50m Ohms, 500V DC
Environment requirement:
- Operating temperatures: 0 to 40°C
- Operating humidity range: 10 to 90% RH (no freezing dew)
- Storage temperatures: -20 to 85°C
- Storage humidity range: 10 to 95% RH (no freezing dew)
- Elevation: <3,000m
- Dimensions (L x W x H): 74 x 46 x 28mm
- Weight: 85g
- EMC: EN55022, GB39254

High-price effective, reliability with plastic crust

Built-in over-voltage, over-current and short-circuit protections

With CE, FCC, CCC marks

Inputs:

Voltage range: 100 to 240V AC
Frequency range: 50 to 60Hz 1A
Line regulation range: ± 0.5 (maximum)
Start up current: 40A/230V AC

Output:

Line regulation range: ± 0.5% (maximum)
Ripple and noise (mVp-p): <1% of output voltage
Adjustable range of output voltage: +5, -3%
Start-up time: ≤ 1 second (input 240V AC and Io=100%)
Hold-up time: ≥ 20ms (input 240V AC and Io=100%)

Protections:

Over-loading protections: 115 to 150% of rated power, when it happened, the power shuts down automatically, when trouble removed the power recovers itself
Over-voltage protections: 130 to 150% of rated voltage
Short-circuit protection
Insulation intensity:
- Input to output: 3,000V/10mA, 60 seconds
Insulation resistance:
- Input to output: ≥ 50m Ohms, 500V DC

Environment requirement:

Operating temperatures: 0 to 40°C
Operating humidity range: 10 to 90% RH (no freezing dew)
Storage temperatures: -20 to 85°C
Storage humidity range: 10 to 95% RH (no freezing dew)
Elevation: <3,000m
Dimensions (L x W x H): 74 x 46 x 28mm
Weight: 85g
EMC: EN55022, GB39254
