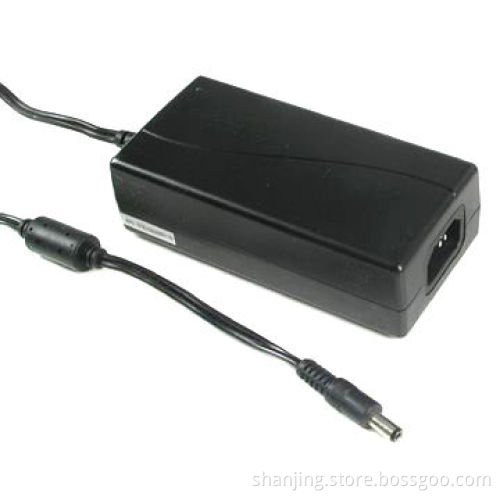

CCTV Power Supply, 12V, 5A, CE Mark

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Built-in over-voltage, over-current and short-circuit protections

Certificates: CE, CCC and UL

Input:

Voltage: 100 to 240V AC
Frequency: 50/60Hz/1.2A
Line regulation range: ±0.5 (maximum)
Start-up current: 40A/230V AC

Output:

Line regulation range: ±0.5% (maximum)
Ripple and noise (mVp-p): <1% of output voltage
Adjustable range of output voltage: +5/-3%
Start-up time: ≤1 second
Hold-up time: ≥20 milliseconds

Protections:

Over-loading protection: 115 to 150% of rated power, when it happened, the power shuts down automatically, when trouble removed the power recovers itself
Over-voltage protection: 130 to 150% of rated voltage
Short-circuit protection
Insulation resistance: ≥50mΩ, 500V DC

Environment requirement:

Operating temperature: 0 to 40°C
Operating humidity range: 10 to 90% RH (no freezing dew)Storage temperature: -20 to 85°C
Storage humidity range: 10 to 95% RH (no freezing dew)

Elevation: <3,000m

Dimensions (L x W x H): 122 x 60 x 37mm

Weight: 300g

EMC: EN55022B, GB9254

Voltage: 100 to 240V AC

Frequency: 50/60Hz/1.2A

Line regulation range: ±0.5 (maximum)

Start-up current: 40A/230V AC

Line regulation range: ±0.5% (maximum)

Ripple and noise (mVp-p): <1% of output voltage

Adjustable range of output voltage: +5/-3%

Start-up time: ≤1 second

Hold-up time: ≥20 milliseconds

Over-loading protection: 115 to 150% of rated power, when it happened, the power shuts down automatically, when trouble removed the power recovers itself

Over-voltage protection: 130 to 150% of rated voltage

Short-circuit protection

Insulation resistance: ≥50mΩ, 500V DC

Operating temperature: 0 to 40°C

Operating humidity range: 10 to 90% RH (no freezing dew)Storage temperature: -20 to 85°C

Storage humidity range: 10 to 95% RH (no freezing dew)
