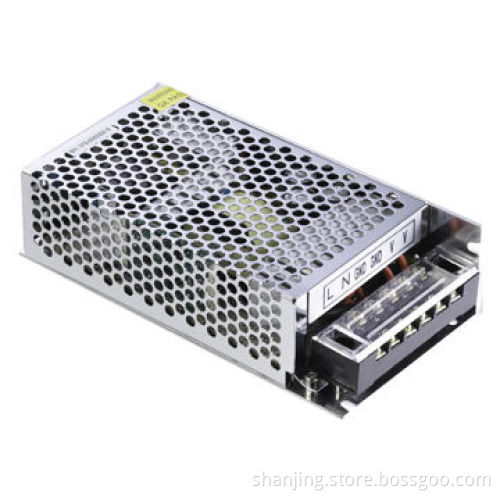

SMPS for CCTV Camera 60W, 100 to 240V AC Input Voltages, Single Output and CE Mark

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Inputs:

Voltage: 176 to 264V AC
Frequency: 50/60Hz at <1A
Line regulation range: ±0.5 maximum

Output:

Line regulation range: ±0.5% maximum
Ripple and noise (mVp-p): <1% of output voltage
Adjustable range of output voltage: ±3%
Start-up time: d1s (AC input 240V and Io=100%)
Hold-up time: e20ms (AC input 240V and Io=100%)
- Protections:
- Overloading protection range: 115 to 150% of rated power, when it happened, the power shuts down automatically, when trouble removed the power recovers itself
- Over-voltage protection range: 130 to 150% of rated voltage
- Over-current protection

Insulation intensity:

Input/output: 1,500V/5mA, 60s
Input/ground: 1,500V/5mA, 60s
Output/ground: 500V/5mA, 60s

Insulation intensity:

Input/output: 1,500V/5mA, 60s
Input/ground: 1,500V/5mA, 60s
Output/ground: 1,500V/5mA, 60s

Environmental requirements:

Operating temperatures: 0 to 40°C
Operating humidity range: 10 to 90% RH (no freezing dew)
Storage temperatures: -20 to 85°C
Storage humidity range: 10 to 95% RH (no freezing dew)

Elevation: <3,000m

Dimensions (L x W x H): 143 x 59 x 39mm

Weight: 300g

EMC: EN55022 and GB3954

Voltage: 176 to 264V AC

Frequency: 50/60Hz at <1A

Line regulation range: ±0.5 maximum

Line regulation range: ±0.5% maximum

Ripple and noise (mVp-p): <1% of output voltage

Adjustable range of output voltage: ±3%

Start-up time: d1s (AC input 240V and Io=100%)

Hold-up time: e20ms (AC input 240V and Io=100%)

Protections:
Overloading protection range: 115 to 150% of rated power, when it happened, the power shuts down automatically, when trouble removed the power recovers itself
Over-voltage protection range: 130 to 150% of rated voltage
Over-current protection

Protections:

Overloading protection range: 115 to 150% of rated power, when it happened, the power shuts down automatically, when trouble removed the power recovers itself

Over-voltage protection range: 130 to 150% of rated voltage

Over-current protection

Input/output: 1,500V/5mA, 60s

Input/ground: 1,500V/5mA, 60s

Output/ground: 500V/5mA, 60s

Input/output: 1,500V/5mA, 60s

Input/ground: 1,500V/5mA, 60s

Output/ground: 1,500V/5mA, 60s

Operating temperatures: 0 to 40°C

Operating humidity range: 10 to 90% RH (no freezing dew)

Storage temperatures: -20 to 85°C

Storage humidity range: 10 to 95% RH (no freezing dew)
