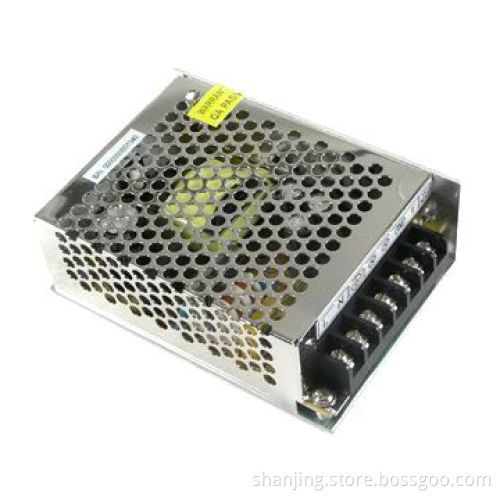

Industrial Power Supply with 48W Output, CE Mark, Reliable Property

Industrial Power Supply with 48W Output, CE Mark, Reliable Property

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

High price-effective, reliability with industry standards

Built-in over-voltage, over-current and short-circuit protections

With CE and CCC marks

Input:

Voltages: 90 to 264V AC ±15%
Frequency: 50/60Hz at 0.6A
Line regulation range: ±0.5 (maximum)
Start-up current: 40A/230V AC

Output:

Line regulation range: ±0.5% (maximum)
Ripple and noise (mVp-p): <1% of output voltage
Adjustable range of output voltage: ±3%
Start-up time: ≤1 second (AC input 240V and Io = 100%)
Hold-up time: ≥20 minutes (AC input 240V and Io = 100%)
Temperature quotient: ±0.02%/°C

Protections:

Overloading: 115 to 150% of rated power, when it happened, the power shuts down automatically, when trouble removed the power recovers itself
Over-voltage: 130 to 150% of rated voltage
Short-circuit

Insulation intensity:

Input/output: 1,500V/5mA, 60 seconds
Input/ground: 1,500V/5mA, 60 seconds
Output/ground: 1,500V/5mA, 60 seconds

Insulation resistance:

Input/output: ≥50mΩ, 500V DC
Input/ground: ≥50mΩ, 500V DC
Output/ground: ≥50mΩ, 500V DC

Environment requirement:

Operating temperatures: 0 to 40°C
Operating humidity range: 10 to 90% RH (no freezing dew)
Storage temperatures: -20 to 85°C
Storage humidity range: 10 to 95% RH (no freezing dew)

Elevation: ≤3,000m

Dimensions (L x W x H): 110 x 78 x 36mm

Weight: 280g

EMC: EN55022B and GB9254

Voltages: 90 to 264V AC ±15%

Frequency: 50/60Hz at 0.6A

Line regulation range: ±0.5 (maximum)

Start-up current: 40A/230V AC

Line regulation range: ±0.5% (maximum)

Ripple and noise (mVp-p): <1% of output voltage

Adjustable range of output voltage: ±3%

Start-up time: ≤1 second (AC input 240V and Io = 100%)

Hold-up time: ≥20 minutes (AC input 240V and Io = 100%)

Temperature quotient: ±0.02%/°C

Overloading: 115 to 150% of rated power, when it happened, the power shuts down automatically, when trouble removed the power recovers itself

Over-voltage: 130 to 150% of rated voltage

Short-circuit

Input/output: 1,500V/5mA, 60 seconds

Input/ground: 1,500V/5mA, 60 seconds

Output/ground: 1,500V/5mA, 60 seconds

Input/output: ≥50mΩ, 500V DC

Input/ground: ≥50mΩ, 500V DC

Output/ground: ≥50mΩ, 500V DC

Operating temperatures: 0 to 40°C

Operating humidity range: 10 to 90% RH (no freezing dew)

Storage temperatures: -20 to 85°C

Storage humidity range: 10 to 95% RH (no freezing dew)
