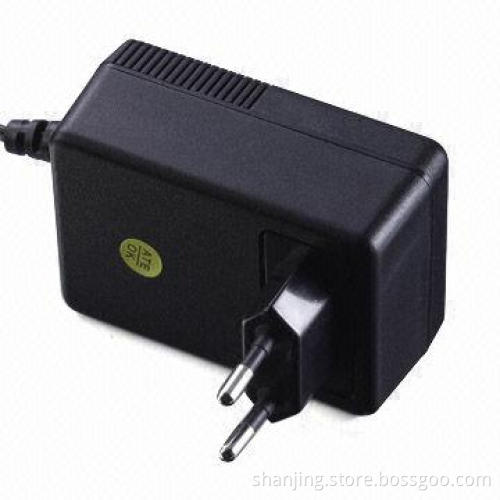

24W Adapter with Plastic Crust

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Features:

With plastic crust
Reliable
Built-in over-voltage, over-current and short-circuitprotection
CE, CCC and UL certified

Specifications:

Input:
- Voltage: 100 to 240V AC
- Frequency: 50/60Hz, less than 0.8A
- Maximum line regulation range: ±0.5
- Start up current: 40A/230V AC
Output:
- Maximum line regulation range: ±0.5%
- Ripple and noise: less than 1% (mVp-p) of output voltage
- Adjustable range of output voltage: 5 and -3%
- Start-up time: ≤1s (input 240V AC and Io=100%)
- Hold-up time: ≥20ms (input 240V AC and Io=100%)
Protection:
- Over loading protection: 115 to 150% of rated power, when ithappened, the power shuts down automatically and when troubleremoved the power recovers itself
- Over-voltage protection: 130 to 150% of rated voltage
- Short-circuit protection
Insulation intensity: 3,000V/10mA, 60s (input/output)
Insulation resistance: ≥50mΩ, 500V DC(input/output)
Environmental requirements:
- Temperatures:
  - Operating: 0 to 40°C
  - Storage: -20 to 85°C
- Humidity range:
  - Operating: 10 to 90% RH (no freezing dew)
  - Storage: 10 to 95% RH (no freezing dew)
Elevation: less than 3,000m
EMC: EN55022B and GB9254
Dimensions: 79 x 55 x 35mm
Weight: 230g

With plastic crust

Reliable

Built-in over-voltage, over-current and short-circuitprotection

CE, CCC and UL certified

Input:

Voltage: 100 to 240V AC
Frequency: 50/60Hz, less than 0.8A
Maximum line regulation range: ±0.5
Start up current: 40A/230V AC

Output:

Maximum line regulation range: ±0.5%
Ripple and noise: less than 1% (mVp-p) of output voltage
Adjustable range of output voltage: 5 and -3%
Start-up time: ≤1s (input 240V AC and Io=100%)
Hold-up time: ≥20ms (input 240V AC and Io=100%)

Protection:

Over loading protection: 115 to 150% of rated power, when ithappened, the power shuts down automatically and when troubleremoved the power recovers itself
Over-voltage protection: 130 to 150% of rated voltage
Short-circuit protection

Insulation intensity: 3,000V/10mA, 60s (input/output)

Insulation resistance: ≥50mΩ, 500V DC(input/output)

Environmental requirements:

Temperatures:
- Operating: 0 to 40°C
- Storage: -20 to 85°C
Humidity range:
- Operating: 10 to 90% RH (no freezing dew)
- Storage: 10 to 95% RH (no freezing dew)

Elevation: less than 3,000m

EMC: EN55022B and GB9254

Dimensions: 79 x 55 x 35mm

Weight: 230g

Voltage: 100 to 240V AC

Frequency: 50/60Hz, less than 0.8A

Maximum line regulation range: ±0.5

Start up current: 40A/230V AC

Maximum line regulation range: ±0.5%

Ripple and noise: less than 1% (mVp-p) of output voltage

Adjustable range of output voltage: 5 and -3%

Start-up time: ≤1s (input 240V AC and Io=100%)

Hold-up time: ≥20ms (input 240V AC and Io=100%)

Over loading protection: 115 to 150% of rated power, when ithappened, the power shuts down automatically and when troubleremoved the power recovers itself

Over-voltage protection: 130 to 150% of rated voltage

Short-circuit protection

Temperatures:
