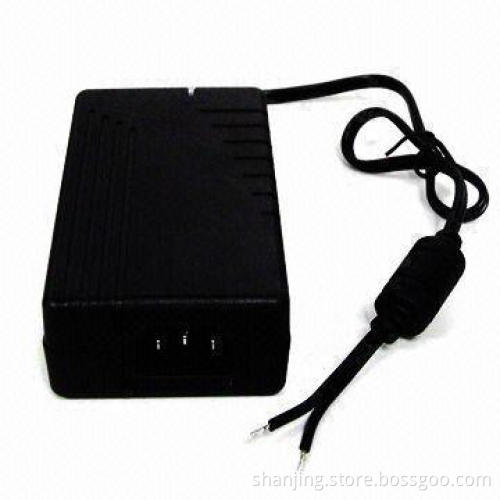

60W AC/DC Adapter, Used for CCTV Cameras, PC and Printer, UL, CE, SAA, CB Certified
  • 60W AC/DC Adapter, Used for CCTV Cameras, PC and Printer, UL, CE, SAA, CB Certified
60W AC/DC Adapter, Used for CCTV Cameras, PC and Printer, UL, CE, SAA, CB Certified

60W AC/DC Adapter, Used for CCTV Cameras, PC and Printer, UL, CE, SAA, CB Certified

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Features:
    • Newest circuit design
    • High price-effective
    • Reliability with plastic crust
    • Built-in over voltage, over current and short-circuit protection
    • CE, CCC and UL certified
  • Protections:
    • Over loading protection: 115 to 150% of rated power, power shuts down automatically, when trouble removed the power recovers itself
    • Over voltage protection
    • Short-circuit protection
    • Insulation intensity
  • Specifications:
    • Input:
      • 100 to 240V AC
      • Frequency: 50 to 60Hz
      • Line regulation range: 1% (maximum)
      • Input current: Start up current: 40A, 230V AC
    • Output:
      • Line regulation range: 1% (maximum)
      • Ripple and noise (mVp-p): 100mv
    • Start up time: 1s (AC input 240V )
    • Hold up time: 20ms (AC input 240V and Io)
    • Elevation: EMC: EN55022B and GB9254
  • Environmental requirements:
    • Operating temperature: 0 to 40 degrees Celsius
    • Operating humidity: 10% to 90% RH (no freezing dew)
    • Storage temperature: -20 to 85 degrees Celsius
    • Storage humidity: 10% to 95%RH (no freezing dew)
    • Dimensions: 118 x 62 x 32mm
    • Weight: 400g
  • Newest circuit design
  • High price-effective
  • Reliability with plastic crust
  • Built-in over voltage, over current and short-circuit protection
  • CE, CCC and UL certified
  • Over loading protection: 115 to 150% of rated power, power shuts down automatically, when trouble removed the power recovers itself
  • Over voltage protection
  • Short-circuit protection
  • Insulation intensity
  • Input:
    • 100 to 240V AC
    • Frequency: 50 to 60Hz
    • Line regulation range: 1% (maximum)
    • Input current: Start up current: 40A, 230V AC
  • Output:
    • Line regulation range: 1% (maximum)
    • Ripple and noise (mVp-p): 100mv
  • Start up time: 1s (AC input 240V )
  • Hold up time: 20ms (AC input 240V and Io)
  • Elevation: EMC: EN55022B and GB9254
  • 100 to 240V AC
  • Frequency: 50 to 60Hz
  • Line regulation range: 1% (maximum)
  • Input current: Start up current: 40A, 230V AC
  • Line regulation range: 1% (maximum)
  • Ripple and noise (mVp-p): 100mv
  • Operating temperature: 0 to 40 degrees Celsius
  • Operating humidity: 10% to 90% RH (no freezing dew)
  • Storage temperature: -20 to 85 degrees Celsius
  • Storage humidity: 10% to 95%RH (no freezing dew)
  • Dimensions: 118 x 62 x 32mm
  • Weight: 400g
