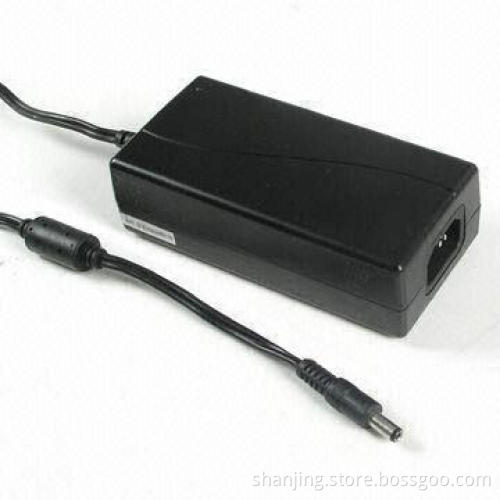

12V AC/DC/5A Power Adapter with High-reliability, Plastic Crust for European and US Markets

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Features:

With plastic crust
Reliability
Built-in over-voltage, over-current and short-circuit protections
With CE, CCC and UL marks

Specifications:

Input:
- Voltage: 100 to 240V AC
- Frequency: 50/60Hz and less than 1.2A
- Maximum line regulation range: 0.5%
- Start up current: 40A/230V AC
Output:
- Maximum line regulation range: 0.5%
- Ripple and noise: less than 1% (mVp-p) of output voltage
- Adjustable range of output voltage: +5 and -3%
- Start-up time: greater than or equal to 1s (input 240V AC and Io = 100%)
- Hold-up time: greater than or equal to 20ms (input 240V AC and Io = 100%)
Protections:
- Over-loading protection: 115 to 150% of rated power, when it happened, the power shuts down automatically and when trouble removed the power recovers itself
- Over-voltage protection: 130 to 150% of rated voltage
- Short-circuit protection
- Insulation intensity: 3,000V/10mA and 60s (input/output)
- Insulation resistance: greater than or equal to 500V DC (input/output)
Environmental requirement:
- Temperature:
  - Operating: 0 to 40°C
  - Storage: -20 to +85°C
- Humidity:
  - Operating: 10 to 90% RH (no freezing dew)
  - Storage: 10 to 95% RH (no freezing dew)
- Elevation: less than 3,000m
- EMC: EN55022B and GB9254
- Dimensions(L x W x H): 122 x 60 x 37mm
- Weight: 300g
