Product Description

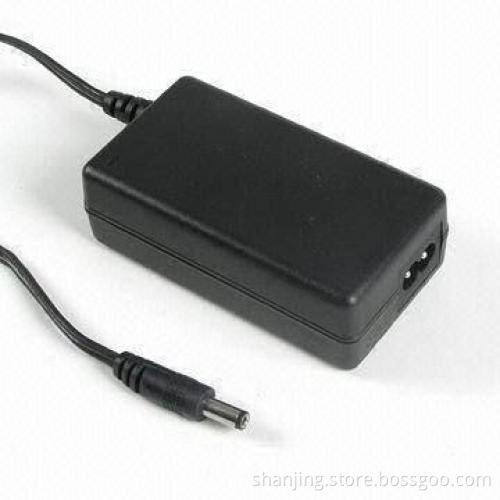

36W AC/DC adapter

With UL, CE, CB and PSE certifications

Suitable for electronic products

Input:

Voltage: 100 to 240V AC

Frequency: 50/60Hz, 0.8A

Line regulation range: ±0.5 (maximum)

Start-up current: 40A/230V AC

Output:

Line regulation range: 0.5% (maximum)

Ripple and noise (mVp-p): <1% of output voltage

Adjustable range of output voltage: +5%, -3%

Start-up time: 1s (AC input 240V and Io=100%)

Hold-up time: more than 20ms (AC input 240V and Io=100%)

Protections:

Overload: 115 to 150% of rated power, when it happened, powershuts down automatically, when trouble removed power recoversitself

Over-voltage: 130 to 150% of rated voltage

Short-circuit protection

Environmental requirements:

Operating temperature: 0 to 40°C

Operating humidity: 10 to 90% RH (no freezing dew)

Storage temperature: -20 to 85°C

Storage humidity: 10 to 95% RH (no freezing dew)

Elevation: <3,000m

Dimensions: 96 x 52 x 31mm

Weight: 200g

EMC: EN55022 and GB3954
