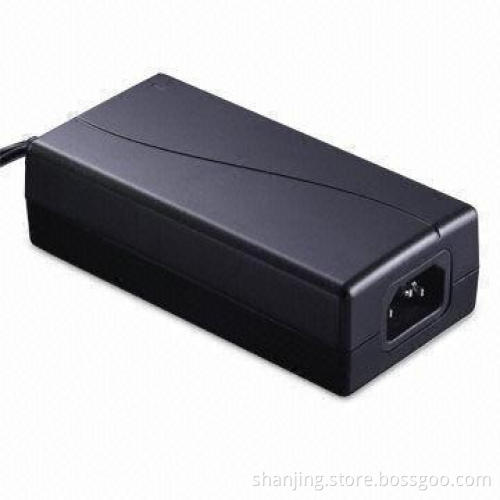

AC/DC Adapter/Switching Power Supply for CCTV Camera, 60W Power, CE and CCC Marks

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Power: 60W
Reliability
Certificates: CE, CCC
Input voltage: 100 to 240V AC
Frequency: 50/60Hz, less than 1.2A
Maximum line regulation range: 177, 0.5%
Start up current: 40A/230V AC
Ripple and noise less than: 1% (mVp-p) of output voltage
Adjustable range of output voltage: 5 and -3%
Start-up time: ≤1 seconds (input 240V AC and 100% Io)
Hold-up time: ≥20 milliseconds (input 240V AC and 100%Io)
Over loading protection: 115 to 150% of rated power, when ithappened, the power shuts down automatically and when troubleremoved the power recovers itself
Over-voltage protection: 130 to 150% of rated voltage
Short-circuit protections
Insulation intensity: 3,000V/10mA, 60s (input/output)
Insulation resistance: ≥50mΩ, 500V DC(input/output)
Operating temperature: 0 to 40176;C
Storage temperature: -20 to 85176;C
Operating humidity: 10 to 90% RH (no freezing dew)
Storage humidity: 10 to 95% RH (no freezing dew)
Elevation: less than 3,000m
EMC: EN55022B and GB9254
Dimensions (L x W x H): 122 x 60 x 37mm
Weight: 300g

Power: 60W

Reliability

Certificates: CE, CCC

Input voltage: 100 to 240V AC

Frequency: 50/60Hz, less than 1.2A

Maximum line regulation range: 177, 0.5%

Start up current: 40A/230V AC

Ripple and noise less than: 1% (mVp-p) of output voltage

Adjustable range of output voltage: 5 and -3%

Start-up time: ≤1 seconds (input 240V AC and 100% Io)

Hold-up time: ≥20 milliseconds (input 240V AC and 100%Io)

Over loading protection: 115 to 150% of rated power, when ithappened, the power shuts down automatically and when troubleremoved the power recovers itself

Over-voltage protection: 130 to 150% of rated voltage

Short-circuit protections

Insulation intensity: 3,000V/10mA, 60s (input/output)

Insulation resistance: ≥50mΩ, 500V DC(input/output)

Operating temperature: 0 to 40176;C

Storage temperature: -20 to 85176;C

Operating humidity: 10 to 90% RH (no freezing dew)

Storage humidity: 10 to 95% RH (no freezing dew)

Elevation: less than 3,000m

EMC: EN55022B and GB9254

Dimensions (L x W x H): 122 x 60 x 37mm

Weight: 300g
