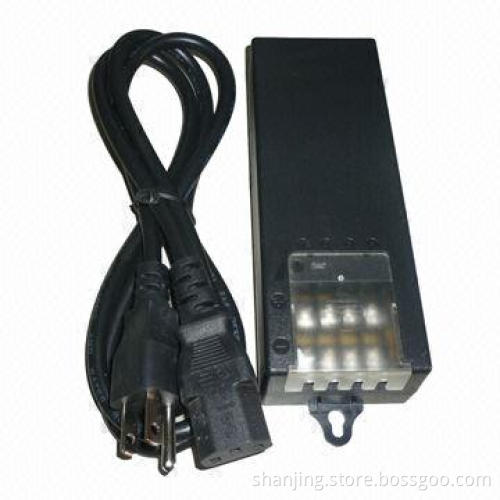

Universal AC /DC Adapter, Used for CCTV Cameras, 12V DC 5Amp 4-channel with UK, EU, USA Plug

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Features:

This AC/DC adapter 5A output with 4 channel switching power supply can be with UK plug and USA plug
Large demand in the CCTV camera market
Simple solution for CCTV power supply
There are 6A PTC fuse in the power supply, LED indication light
Input: 100 to 240V AC
Output: 12V DC, 5A, 4 x 1.25, 60W
AC input between the two poles
Voltage with full load: 11.64 to 12.6V DC
Voltage without load: 12V +5% V DC
Efficiency: >80%
Input frequency range: 50 to 60Hz
SCP/OCP/OVP/OTP
I standard, high insulation
Power consumption (without load) is less than 0.5W
One year warranty
MTBF: with 25 environment temperature, within the rated 10 degrees Celsius range, the MTBF is 50,000 hours
Burn-in: with 40 ±5 environment temperature, burn-in with full load for 4 hours
