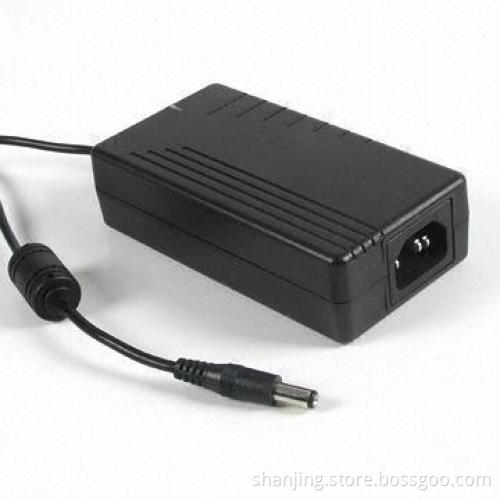

AC/DC Adapter with 40A/230V AC Start Up Current and Over-voltage Protection

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Input:

100V AC to 240V

Frequency: 50/60Hz, 0.8A

Line regulation range: ±0.5 maximum

Start up current: 40A/230V AC

Output:

Line regulation range: ±0.5% maximum

Ripple and noise (mVp-p): <1% of output voltage

Adjustable range of output voltage: +5, 3%

Start-up time: d1s (input 240V AC and Io=100%)

Hold-up time: e20ms (input 240V AC and Io=100%)

Protection:

Over-loading protection: 115 to 150% of rated power, when ithappened, the power shuts down automatically, and when troubleremoved the power recovers itself

Over-voltage protection: 130 to 150% of rated voltage

Short circuit protection

Insulation intensity:

Input output: 3,000V/10mA, 60s

Insulation resistance:

Environmental requirements:

Operating temperature: 0 to 40°C

Operating humidity: 10 to 90% RH (no freezing dew)

Storage temperature: -20 to 85°C

Storage humidity: 10 to 95% RH (no freezing dew)

Elevation: <3,000m

Dimensions (L x W x H): 118 x 62 x 32mm

Weight: 200g

EMC: EN55022, GB3954
