Universal AC/DC Adapter, Power Supply, Used for CCTV Cameras, Atomizers and Electronic Devices

Universal AC/DC Adapter, Power Supply, Used for CCTV Cameras, Atomizers and Electronic Devices

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

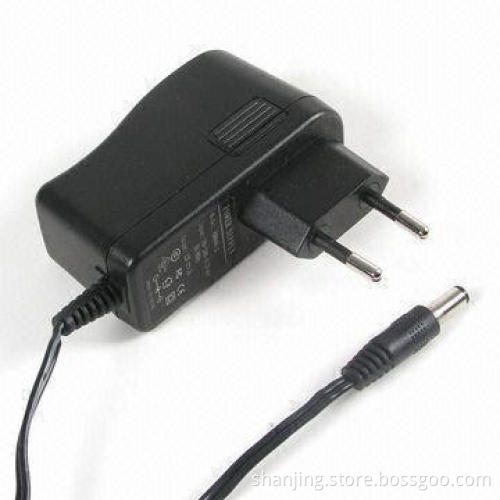

5.4W, 9V 0.6A wall plug switching power adapters

Features:

High price-effective, reliability with plastic crust
Built-in over-voltage, over-current and short-circuit protection
With CE, FCC and CCC approvals

Input:

Voltage: 100 to 240V AC
Frequency: 50/60Hz 0.2A
Line regulation range: ±0.5 maximum
Start up current: 40A/230V AC

Output:

Line regulation range: ±0.5% maximum
Ripple and noise (mVp-p): less than 1% of output voltage
Adjustable range of output voltage: +5%, -3%
Start-up time: 1 seconds (AC input 240V and Io 100%)
e) Hold-up time: 20ms (AC input 240V and Io 100%)

Protection:

Overloading protection: 115 to 150% of rated power, when it happened, the power shuts down automatically; when trouble removed the power recovers itself
Over-voltage protection: 130 to 150% of rated voltage
Short-circuit protection

Insulation intensity: input to output: 3000V/10mA, 60 seconds

Insulation-resistance: input to output: 50MΩ, DC 500V

Environmental requirements:

Operating temperatures: 0 to 40°C
Operating humidity range: 10 to 90% RH (no freezing dew)
Storage temperatures: -20 to 85°C
Storage humidity range: 10 to 95% RH (no freezing dew)
Elevation: less than 3000m
Dimensions (L x W x H): 74 x 46 x 28mm
Weight: 85g
EMC: EN55022, GB39254

High price-effective, reliability with plastic crust

Built-in over-voltage, over-current and short-circuit protection

With CE, FCC and CCC approvals

Voltage: 100 to 240V AC

Frequency: 50/60Hz 0.2A

Line regulation range: ±0.5 maximum

Start up current: 40A/230V AC

Line regulation range: ±0.5% maximum

Ripple and noise (mVp-p): less than 1% of output voltage

Adjustable range of output voltage: +5%, -3%

Start-up time: 1 seconds (AC input 240V and Io 100%)

e) Hold-up time: 20ms (AC input 240V and Io 100%)

Overloading protection: 115 to 150% of rated power, when it happened, the power shuts down automatically; when trouble removed the power recovers itself

Over-voltage protection: 130 to 150% of rated voltage

Short-circuit protection

Operating temperatures: 0 to 40°C

Operating humidity range: 10 to 90% RH (no freezing dew)

Storage temperatures: -20 to 85°C

Storage humidity range: 10 to 95% RH (no freezing dew)

Elevation: less than 3000m

Dimensions (L x W x H): 74 x 46 x 28mm

Weight: 85g

EMC: EN55022, GB39254
