Product Description

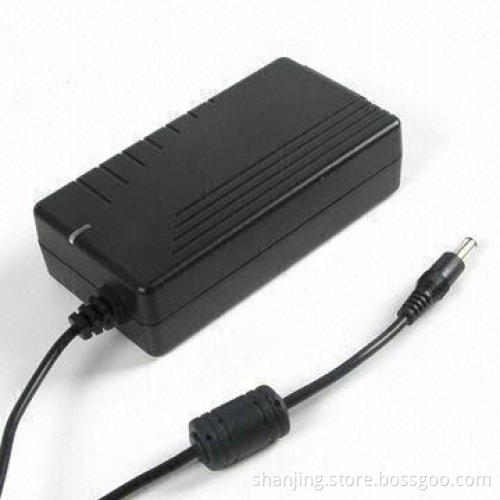

60W 24V, DC 2.5A medical power supply

More than 80% efficiency

Comes with plastic crust

Built-in over voltage, over-current and short-circuitprotection

Input:

Output:

Protection:

Environmental requirements:

Dimensions: 118 x 62 x 32mm

Weight: approximately 400g

EMC: EN55022B, GB9254

With CE, CCC, UL, and SAA certificates

Voltage: AC 100V-240V

Frequency: 50/60Hz

Line regulation range: 0.5 at maximum

Input current: less than 1.2A

Start-up current: 40A/230V AC

Line regulation range: 0.5% at maximum

Ripple and noise (mVp-p): <1% of output voltage

Adjustable range of output voltage: 5, -3%

Start-up time: at most one second (AC input 240V and IO =100%)

Hold-up time: at least 20ms (AC input 240V and IO = 100%)

Overloading protection: 115% to 150% of rated power

Over-voltage protection: 130% to 150% of rated voltage

Short-circuit protection

Operating temperature: 0 to 40°C

Operating humidity: 10 to 90% RH (no freezing dew)

Storage temperatures: -20 to 85°C

Storage humidity: 10 to 95% RH (no freezing dew)

Elevation: less than 3000m
