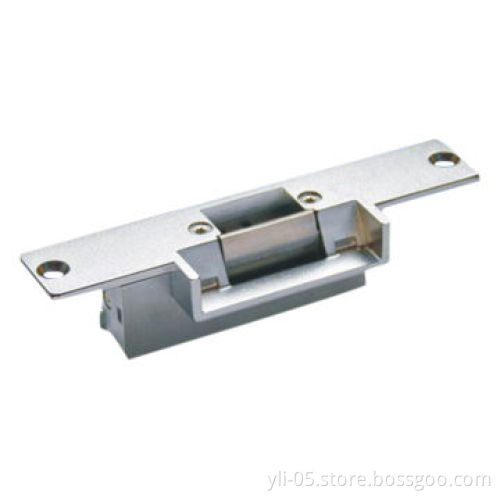

Fail safe standard type electric strike(NC)

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Lock size: 150Lx39.5Wx34H(mm)

lts structure: Stainless steel

Holding Stength: 500kg

Voltage: DC12V(Need Order DC24V)

Current: 200mA(YS-130NO); 200mA(YS-130NC)

Feature: Fail secure(YS-130NO); fail safe(YS-130NC)

Suitable for: Wooden door, metal door, PVC door

Surface temperature: Within +20℃

Suitable temperatures: -10~55℃(14-131F)

Operating humidity: 0～90%(non-condensing)

Face plate housing: Painted steel

Bolt housing: Stainless steel, draw the polishing of silk

Function: Built-out MOV

Optional accessories: YS-305 YS-306

Weight： 0.4kg quality

Warranty: Provides 3 years warranty for relative products.

Holding 500kg

Aluminum, stainless steel bolt

Testing to 1,000,000 cycles

High-temperature painted, duable and beautiful artical

CE certificate by European Union, MA certificate by China Public Security office

Packing quantity(PCS/CTN): 60

Packing size(L*W*H)(cm)： 54.5*20*30.5

Gross weight(KG)： 23.4
