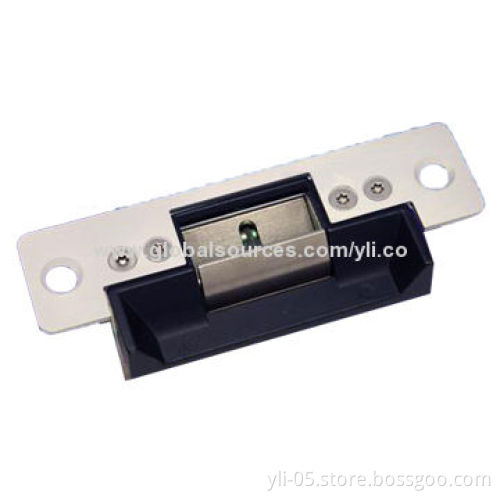

ANSI Standard Heavy Duty Electric Strike, 123x43x42mm Lock Size, 320mA CurrentNew
  • ANSI Standard Heavy Duty Electric Strike, 123x43x42mm Lock Size, 320mA CurrentNew
ANSI Standard Heavy Duty Electric Strike, 123x43x42mm Lock Size, 320mA CurrentNew

ANSI Standard Heavy Duty Electric Strike, 123x43x42mm Lock Size, 320mA CurrentNew

Get Latest Price
Payment Type:
T/T in Advance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance
Product Description
Product Description
  • Product parameters:
    • Lock size (L x W x H): 123x43x42mm
    • Structure: stainless steel
    • Holding strength: 500kg
    • Voltage: 12V DC(needs order 24V DC)
    • Current: 320mA
    • Suitable for wooden doors, metal doors, PVC doors
    • Surface temperature: within +20°C
    • Suitable temperature: -10 - +55°C(14-131°F)
    • Operating humidity: 0-90% RH (non-condensing)
    • Face plate housing: painted steel
    • Bolt housing: stainless steel, draw the polishing of silk
    • Function: built-out MOV
    • Optional accessories: YS-305, YS-306
    • Weight: 0.34kg
  • Quality guarantee:
    • Warranty service will be honored if the damage is not caused by human
    • YLI provides 3 years warranty for relative products
    • On the contrary, YLI will charge extra if repair
    • More information, please browse our service center
  • Advantages:
    • Holding: 500kg
    • Aluminum, stainless steel bolt
    • Testing to 1,000,000 cycles
    • High-temperature painted, durable and beautiful article
    • CE certificate by European union, MA certificate by China public security office
  • Statement:
    • YLI Company retains right to modify the specification of products and for parameters amendment of products, we will not inform in advance
    • The relative pictures are not allowed to used in any other way without the consent of YLI company
    • Meanwhile, we reserved all the rights of law for any tangle
  • Packing:
    • Packing quantity: 30pcs/ctn
    • Packing size(Lx W x H): 54.5*20*30.5cm
    • Gross weight: 12.3kg
  • Lock size (L x W x H): 123x43x42mm
  • Structure: stainless steel
  • Holding strength: 500kg
  • Voltage: 12V DC(needs order 24V DC)
  • Current: 320mA
  • Suitable for wooden doors, metal doors, PVC doors
  • Surface temperature: within +20°C
  • Suitable temperature: -10 - +55°C(14-131°F)
  • Operating humidity: 0-90% RH (non-condensing)
  • Face plate housing: painted steel
  • Bolt housing: stainless steel, draw the polishing of silk
  • Function: built-out MOV
  • Optional accessories: YS-305, YS-306
  • Weight: 0.34kg
  • Warranty service will be honored if the damage is not caused by human
  • YLI provides 3 years warranty for relative products
  • On the contrary, YLI will charge extra if repair
  • More information, please browse our service center
  • Holding: 500kg
  • Aluminum, stainless steel bolt
  • Testing to 1,000,000 cycles
  • High-temperature painted, durable and beautiful article
  • CE certificate by European union, MA certificate by China public security office
  • YLI Company retains right to modify the specification of products and for parameters amendment of products, we will not inform in advance
  • The relative pictures are not allowed to used in any other way without the consent of YLI company
  • Meanwhile, we reserved all the rights of law for any tangle
  • Packing quantity: 30pcs/ctn
  • Packing size(Lx W x H): 54.5*20*30.5cm
  • Gross weight: 12.3kg
