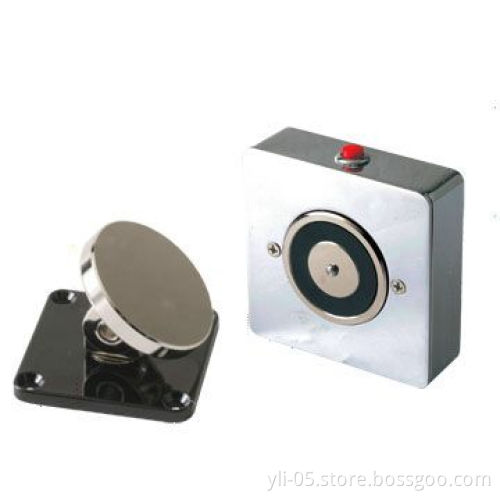

Door Strops with 12/24V DC Voltage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Dimensions (L x W x H): 88 x 88 x 27mm

Holding force: 50kg (100lbs)

Voltage: 12/24V DC ±10%

Current draw: 12/100 or 24V/50mA

The hand moves and closes the door to release the button(optional)

Suitable for: all kinds of the single and double smoke-proof doors

Surface temperature: d20

Operating temperatures: -10 to 55 (14 to 131°F)

Suitable humidity range: 0 to 90% RH (non-condensing)

Finishing for shell: high-temperature paint and environmental protection zinc

Finishing for armature: zinc

Collinear loading test 50kg, 100 pounds

Dual-voltages: 12 or 24V DC (optional)

The standard voltage is 12V DC when finished

MOV provides reverse current protection

Low-power, environmental protection

Anti-residual magnetism designed

Professional design, dual-insulated housing

Shunt and defend the cigarette door automatically during the fire alarm

With CE certificate by European Union

Weight: 0.96kg

Standard packing: 15 pieces
