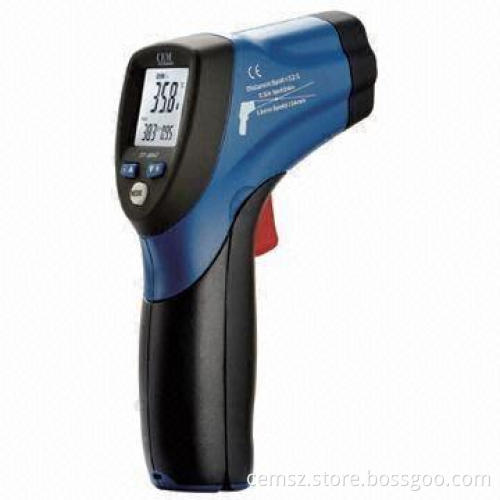

High Temperature Infrared Thermometer with Dual Laser Pointer and 8 to 14um Spectral Response

Get Latest Price

Payment Type:: T/T Before Shipment or L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T Before Shipment or L/C at Sight

Product Description

Features:

Backlight LCD display
Rapid detection function
Precise non-contact measurements
Dual laser sighting
Unique flat surface, modern housing design
Automatic data hold
°C/F switch
Emissivity digitally adjustable from 0.10 to 1.0
Maximum temperature displays
Automatic selection range and display resolution 0.1°C(0.1°F)
Trigger lock
Set high and low alarms

Specifications:

Temperature range: -50 to 650°C (-58 to 1,202°F)
Display resolution: 0.1°C (0.1°F)
Optical resolution: 12:1 distance to spot size
Basic accuracy: ±1.0% of reading
Response time: <150ms
Spectral response: 8 to 14um
Emissivity: adjustable 0.1 to 1.0
Over range indication
Polarity: automatic (no indication for positive polarity)
Minus sign for negative polarity
Diode laser: output <1mW
Wavelength: 630 to 670nm
Class 2(II) laser product
Operating temperature: 0 to 50°C (32 to 122°F)
Storage temperature: 20 to 60°C (-4 to 140°F)
Relative humidity:
- Operating: 10 to 90%RH
- Storage: <80%RH
Power supply: 9V battery, NEDA 1604A or IEC 6LR61 orequivalent
Size: 146 x 104 x 43mm
Weight: 163g

Safety: CE and comply with EMC standard

Backlight LCD display

Rapid detection function

Precise non-contact measurements

Dual laser sighting

Unique flat surface, modern housing design

Automatic data hold

°C/F switch

Emissivity digitally adjustable from 0.10 to 1.0

Maximum temperature displays

Automatic selection range and display resolution 0.1°C(0.1°F)

Trigger lock

Set high and low alarms

Temperature range: -50 to 650°C (-58 to 1,202°F)

Display resolution: 0.1°C (0.1°F)

Optical resolution: 12:1 distance to spot size

Basic accuracy: ±1.0% of reading

Response time: <150ms

Spectral response: 8 to 14um

Emissivity: adjustable 0.1 to 1.0

Over range indication

Polarity: automatic (no indication for positive polarity)

Minus sign for negative polarity

Diode laser: output <1mW

Wavelength: 630 to 670nm

Class 2(II) laser product

Operating temperature: 0 to 50°C (32 to 122°F)

Storage temperature: 20 to 60°C (-4 to 140°F)

Relative humidity:

Operating: 10 to 90%RH
Storage: <80%RH

Power supply: 9V battery, NEDA 1604A or IEC 6LR61 orequivalent

Size: 146 x 104 x 43mm

Weight: 163g

Operating: 10 to 90%RH

Storage: <80%RH
