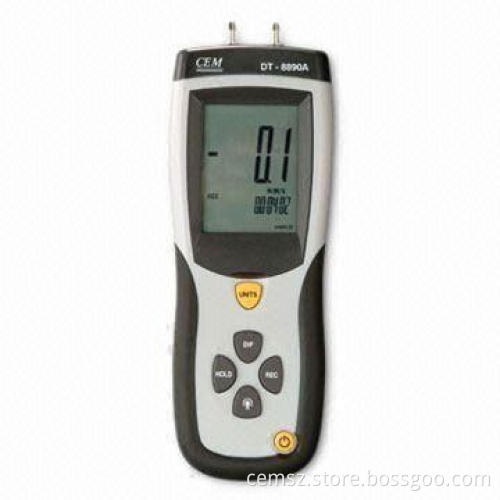

Differential Pressure Manometer with Optional USB Software, Zero Adjust, Offset and DIF Functions

Get Latest Price

Payment Type:: T/T before shipment or L/C at sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T before shipment or L/C at sight

Product Description

Device measures gauge/differential pressure from 0 to 5psi

Features 11 selectable units of measure: inH20, psi, bar, mbar,kPa, inHg, mmHg, ozin, ftH20, cmH20 and kgcm

Auto power off disabled

An USB for capturing and reading to PC using optionalsoftware

Careful use of this meter will provide years of reliableservice

Larger dual LCD with backlight

Data hold

Maximum, minimum and average value with relative timestamp

Optional USB software

Zero adjust, offset and DIF functions

Low battery indication and auto power off

Record

Error codes

Specifications:

Display: dual LCD
Accuracy: ±0.3%FSO
Repeatability: ±0.2% (maximum ±0.5%FSO)
Linearity/hysteresis: ±0.29%FSO
Pressure range: ±5psi
Maximum pressure: 20psi
Response time: 0.5 seconds typical
Low battery indicator: yes
Over range indicator: Err.1
Under range indicator: Err.2
Optional USB software (disk and PC cable)
Serial format: 9,600bps baud rate and 8 data bits
Power supply: 1 x 9V battery or external 9V DC
Operating conditions: 0 to 50 degrees Celsius
Storage conditions: -10 to 60 degrees Celsius
Size: (H) 210 x (W) 75 x (D) 50mm
Weight: 280g

Accessories:

9V battery
USB cables
9V power supply
CD software
Soft tube
Gift box with carrying case

Display: dual LCD

Accuracy: ±0.3%FSO

Repeatability: ±0.2% (maximum ±0.5%FSO)

Linearity/hysteresis: ±0.29%FSO

Pressure range: ±5psi

Maximum pressure: 20psi

Response time: 0.5 seconds typical

Low battery indicator: yes

Over range indicator: Err.1

Under range indicator: Err.2

Optional USB software (disk and PC cable)

Serial format: 9,600bps baud rate and 8 data bits

Power supply: 1 x 9V battery or external 9V DC

Operating conditions: 0 to 50 degrees Celsius

Storage conditions: -10 to 60 degrees Celsius

Size: (H) 210 x (W) 75 x (D) 50mm

Weight: 280g

9V battery

USB cables

9V power supply

CD software

Soft tube

Gift box with carrying case
