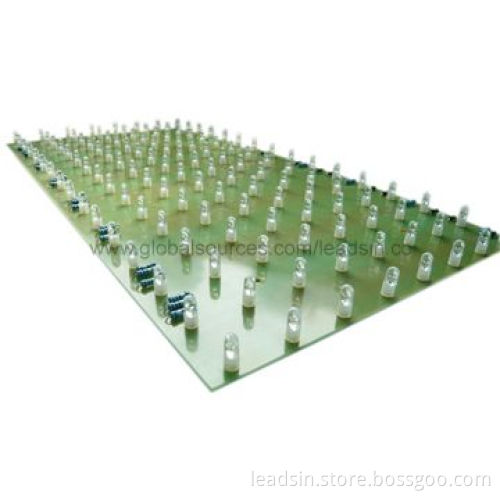

Custom Circuit Board and Assembly Offer, Panel Size of 19.7 x 31.5 Inches, 1 to 30 Layers

Get Latest Price

Payment Type:: T/T, L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C

Product Description

Description:

Leadsintec offers printed circuit board fabrication, providingconsistent high quality and affordable price of printed circuitboards
Whether it is a single board for a prototype or large volumeproduction runs, leadsintec can come to meet your PCB fabricationneeds in a variety of materials and technologies
We make single, double and multi-layer printed circuit boardsin varying complexities

Specifications:

Panel size: 19.7 x 31.5 inches (maximum)
Number of layers: 1 to 30 (maximum)
Copper thickness: 0.5 oz to 5.0 oz
Line width: 3 mils (minimum)
Line spacing: 3 mils (minimum)
Smallest hole: 0.006 inches
Blind, buried and plugged Vias
Controlled impedance
Material
Thickness: 0.008 to 0.240 inches
FR-4
High TG FR-4
PTFE
Aluminum base
Rogers
Specialized material per your request
Solder mask
LPI, green, yellow, black, red, blue and more
Peelable mask
Inspection methods
100% visual inspection
Electrical testing, flying probe or nails bed
Sample lot inspection
Cross sectioning
Final finishes
SMOBC (HASL)
Carbon
Selective gold plating
Hard and soft gold
Immersion gold
Immersion silver
Immersion tin
OSP
