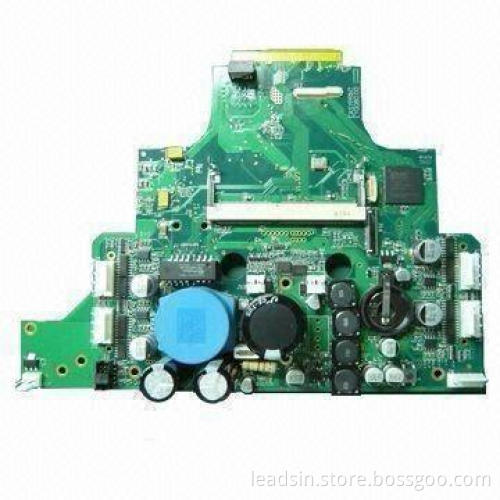

PCB Assembly with 1 to 30 Layer and Minimum Line Spacing/Width/Hole

Get Latest Price

Payment Type:: T/T, PayPal or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal or L/C

Product Description

PCB thickness: 0.2 to 7mm

Layers: 1 to 30

Line width: 3-mil (minimum)

PCB assembly, components

With UL listed and SGS mark

Used in a wide range of fields such as computers, digital products,medical equipment, automobiles, communication devices, military, industrial control and aviation

PCB process capability:

Layer: 1 to 30

Board finished thickness: 0.21 to 7.0mm

Material: FR-4, CEM-1 and CEM-3

Finished board size: 23 x 25 (580 x 900mm) (maximum)

Drilled hole size: 3 mills (0.075mm) (minimum)

Line width: 3 mills (0.075mm) (minimum)

Line spacing: 3 mills (0.075mm) (minimum)

HASL/HASL lead free, HAL, chemical tin

Pro filling: punching routing, V-cut, beveling

Inner packaging: vacuum

Outer packaging: standard carton

Shape tolerance: ±0.13

Hole tolerance:

PTH: ± 0.076
NPTH: ± 0.05

Special require: buried and blind via

With UL, SGS and RoHS marks

Partner with us and u will surely be satisfied with our one-top services

Our 100% satisfaction rate covers designing, prototyping and volume production

And we not only process quick turn orders, but also welcomed small and large-volume PCB projects

PTH: ± 0.076

NPTH: ± 0.05
