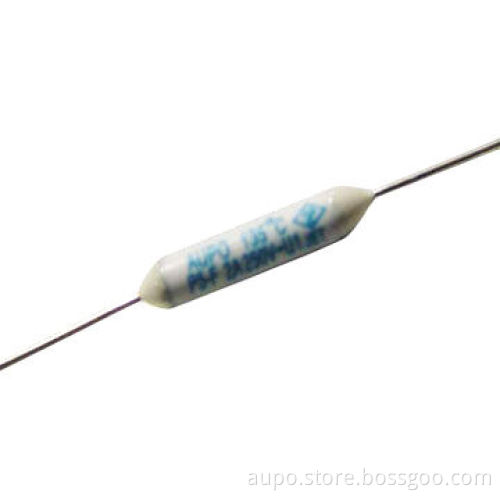

Thermal Cut-off/Fuse with 5A Maximum Rated Current and RoHS Directive-compliant, UL Mark

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Rated functioning temperature (TF):

Fusing-off temperature:

Maximum temperature limit (TM): 180 degrees Celsius

Holding temperature (TH):

Rated voltage: 250V AC

Rated current: 1, 2, 3 and 5A

Certifications: UL, CUL, VDE, PSE, CCC and EK

With RoHS Directive-compliant

P2: 115 degrees Celsius

P3: 125 degrees Celsius

P4: 130 degrees Celsius

P5: 135 degrees Celsius

P9: 138 degrees Celsius

P7: 150 degrees Celsius

P2: 112 ± 3 degrees Celsius

P3: 120 ± 3 degrees Celsius

P4: 126 ± 2 degrees Celsius

P5: 131 ± 3 degrees Celsius

P9: 135 ± 2 degrees Celsius

P7: 145 ± 3 degrees Celsius

P2: 85 degrees Celsius

P3: 97 degrees Celsius

P4: 102 degrees Celsius

P5: 105 degrees Celsius

P9: 108 degrees Celsius

P7: 120 degrees Celsius
