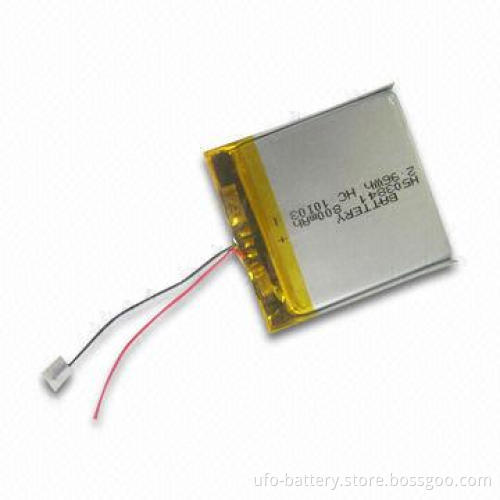

Lithium Polymer Batteries with 3.7V Nominal Voltage and 800mAh Typical Capacity
  • Lithium Polymer Batteries with 3.7V Nominal Voltage and 800mAh Typical Capacity
Lithium Polymer Batteries with 3.7V Nominal Voltage and 800mAh Typical Capacity

Lithium Polymer Batteries with 3.7V Nominal Voltage and 800mAh Typical Capacity

Get Latest Price
Payment Type:
30% Deposit, the Balance is Paid off before Shipme
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: 30% Deposit, the Balance is Paid off before Shipme
Product Description
Product Description
  • Specifications:
    • Typical capacity: 800mAh
    • Nominal voltage: 3.7V
    • End voltage: 2.75V
    • Charging current: 0.2CA = 160mA
    • Charging current: 1.0CA = 800mA (maximum)
    • Charging voltage: 4.20 ±0.025V
    • Charging time: 6 to 7.0 hours (standard)
    • Charging time: 2 to 3.0 hours (maximum)
    • Continuous discharging current: 800mAh (maximum)
    • Discharging current: 1,600mAh (maximum)
    • Internal resistance: <160mΩ (25°)
    • Maximum dimension (T x W x L): 4.7x 35.0 x 51.50mm
    • Connector: ALEX 2510-3
    • Weight: 15g
  • Features:
    • High-capacity density
    • High-safety, no burning and explosion
    • Can use any object shape
    • Clean and green energy
    • With CE, RoHS and UL marks
  • Applications:
    • Widely used in portable devices, audio and video devices, such as PDA, GPS, MP3/MP4 players, e-book
  • Typical capacity: 800mAh
  • Nominal voltage: 3.7V
  • End voltage: 2.75V
  • Charging current: 0.2CA = 160mA
  • Charging current: 1.0CA = 800mA (maximum)
  • Charging voltage: 4.20 ±0.025V
  • Charging time: 6 to 7.0 hours (standard)
  • Charging time: 2 to 3.0 hours (maximum)
  • Continuous discharging current: 800mAh (maximum)
  • Discharging current: 1,600mAh (maximum)
  • Internal resistance: <160mΩ (25°)
  • Maximum dimension (T x W x L): 4.7x 35.0 x 51.50mm
  • Connector: ALEX 2510-3
  • Weight: 15g
  • High-capacity density
  • High-safety, no burning and explosion
  • Can use any object shape
  • Clean and green energy
  • With CE, RoHS and UL marks
  • Widely used in portable devices, audio and video devices, such as PDA, GPS, MP3/MP4 players, e-book
